B-204-A-21
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 1-2 Days

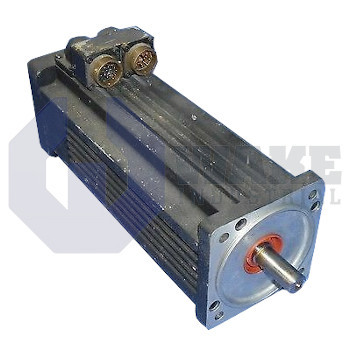

The B-204-A-21 is manufactured by Kollmorgen as a part of their Goldline B/BH Motor Series. These motors feature a max BUS of 320 and a max stall tc of 61.1 lb-in. As a low inertia motor, it features a max speed of 1900 RPM and a max rated power of .82 kW.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The B-204-A-21 is a state-of-the-art Goldline motor that is designed to be used in conjunction with SERVOSTAR amplifiers. Manufactured by Kollmorgen, it provides high performance in a wide array of applications. The motor incorporates an exceptional thermal design and high energy rare earth neodymium-iron-boron magnets to enable acceleration capabilities and continuous torque performance. When used with the SERVOSTAR digital amplifier, the system provides high torque and speed ratings. This Kollmorgen motor is UL recognized, comes in a compact design, has a shaft extension, and an integrated thermostat.
The B-204-A-21 is a low inertia motor that provides high performance for rapid acceleration and deceleration applications. For improved performance, it has options such as IP 65/67 sealing, electromechanical fail-safe brake, NEMA mounts, and mating connectors. It features resolver feedback, 4.79N-m continuous torque, 9.5N-m peak torque, 2.83kW continuous power, and a maximum power of 6200RPM. It weighs 6.2kg and should be used in conjunction with the SR10 amplifier. The SR10 amplifier features a DC Bus voltage input of 110-360VDC, 10RMS output continuous current, PWM switching frequency of 16 kHz, and an output continuous power of 3.6kW. This amplifier comes in a compact design to simplify system installation and setup.
The B-204-A-21 and SR10 combination is brought to operation seamlessly thanks to the MOTIONLINK software. It enables novice and professional users to quickly set-up and fine-tune the servo system. Some of the features that enable this include activating position limits, limiting maximum speed or torque, monitor mode, direct terminal mode, and PC Oscilloscope. The amplifier comes in a robust design that protects it against overvoltage, short circuit, under-voltage, and heatsink overtemperature. Get this Kollmorgen motor from Wake Industrial.
Frequently Asked Questions about B-204-A-21:
Q: Which is the optimal drive controller for the motor?
A: The optimal controllers for the motor belong to the Servostar product line from Kollmorgen.
Q: What are features of B series motor?
A: Features of B series motors include compact size, resolver feedback, integrated thermostat, and class H insulation.
Q: What options are available for B series motors?
A: Options for B series motors include fail-safe braking, NEMA mountings, encoder feedback and front mounted gearheads.
Q: What are torque ratings for the motor?
A: The continuous stall torque at 25 °C is 1.64 Nm and the continuous stall torque at 40 °C is 1.55 Nm.
Q: What are current ratings for the motor?
A: The continuous current is 3 Amps and the peak current is 9 Amps.
