EP3632-1435-7-56BC-CU

  • Rated 4.4 (31 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options

The EP3632-1435-7-56BC-CU is manufactured by Kollmorgen as part of the EP explosion proof motor series and features a current amp of 3.5 and hp of (1/3). It also includes a voltage of 90 and a RPM of 1750.

Preparing your secure checkout page...

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

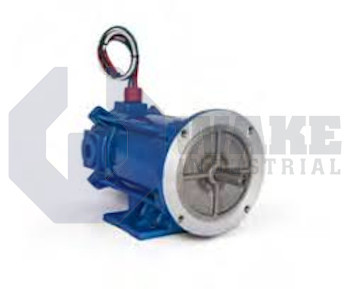

The EP3632-1435-7-56BC-CU is one of the various permanent DC motors from Kollmorgen in its EP series. The environmentally protected motor is explosion-proof and has 3.5A continuous current rating. The motor supports NEMA mounting configuration and operates at 1750RPM. The washdown duty unit comes with a polyester impregnated armature. This impregnation offers assurance of electrical and mechanical integrity. It comes equipped with standard large sealed bearings. The length of the motor is 11.38 inches and it weighs 27lbs.

The standard motor has a fused and rugged commutator. The device supports the smooth running of the motor at low speed because of the anti-cogging property of the motor. It has a 1/3HP power rating and a 90V voltage rating. The brush springs feature field-replaceable brushes. They also have a long life that helps to provide constant force. The Class H insulation motor comes in a non-vented TENV enclosure. The manufacturer?s DC motors are widely used across several sectors such as laboratory automation, oil and gas industry, printing, medical imaging, and robotics to highlight just a few.

The motor has a large gasketed conduit box that functions as a wiring compartment. The device adheres to CSA Certification and UL Recognition standards. The NEMA 56C face has a removable base. The motor features 6.6mH inductance, 1.76 ohms resistance, 5.0lbs-in inertia, and 12lbs-in constant torque. It also has 3.5A continuous current rating, 71A peak current rating and 3.94lbs-in/A torque constant. The permanent magnets motor comes with a one-year warranty and can be sent to any address in the world through our delivery partners. The company manufactures several other types of motors for a range of industries.

  • EP-3632-1435-7-56BC-CU
  • EP36321435756BCCU
  • EP3624-1434-7-56BC

EP3632-1435-7-56BC-CU Technical Specifications

Current Amps: 3.5
HP: (1/3)
Length (in.): 11.38
NEMA Frame: 56C
RPM: 1750
Torque (lb-in.): 12
Volt: 90
Weight (lbs.): 27
