EP3620-1954-7-56BC-CU

  • Rated 4.4 (28 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The EP3620-1954-7-56BC-CU is manufactured by Kollmorgen as part of the EP explosion proof motor series and features a current amp of 28 and hp of (1/3). It also includes a voltage of 12 and a RPM of 1750.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

EP3620-1954-7-56BC-CU

  • Rated 4.4 (28 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The EP3620-1954-7-56BC-CU is manufactured by Kollmorgen as part of the EP explosion proof motor series and features a current amp of 28 and hp of (1/3). It also includes a voltage of 12 and a RPM of 1750.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a EP3620-1954-7-56BC-CU to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

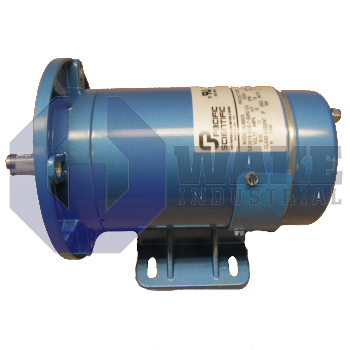

The EP3620-1954-7-56BC-CU is an explosion-proof permanent magnet DC motor from Kollmorgen in its EP series range. The motor comes with a non-vented TENV configuration and has Class H insulation to withstand high temperatures. The fields generated by the magnets are light, small, and efficient and delivers a 1750RPM speed. The standard bearings have large seals fitted on them. The gasketed conduit box acts as a large wiring compartment that makes the termination process easy.

The brush springs have a long life and offer constant force. They are equipped with field-replaceable brushes. The motor also includes a polyester impregnated armature that renders mechanical and electrical integrity. The DC unit has 1/3HP power rating, 12V operating voltage and 28A continuous current. It is UL Recognized and CSA Certified. The washdown duty device is 10.38 inches long and weighs 19 LBS. We offer the motor that has quality and rugged construction with a one-year warranty period.

The motor is environmentally protected and has a NEMA 56C face.It is used in several industries such as oil and gas, printing, the material forming and cutting industry, packaging and converting, and more. It comes with 0.52lb-in/A torque constant, 12lbs-in continuous torque, 3.5lbs-in inertia, 0.18mH inductance and 0.04 ohms resistance. The motor has four equally spaced mounting holes, each with 3/8-16 UNC thread type and a 0.75-inch ex socket. The lead has a 0.625-inch diameter. Kollmorgen has years of expertise in manufacturing both classic and direct drive servomotors, multi-axis and CNC motion controllers, stepper motors, amplifiers, and more. We deliver these motors worldwide through our delivery partners.

  • EP-3620-1954-7-56BC-CU
  • EP36201954756BCCU
  • EP3624-1434-7-56BC

EP3620-1954-7-56BC-CU Technical Specifications

Current Amps: 28
HP: (1/3)
Length (in.): 10.38
NEMA Frame: 56C
RPM: 1750
Torque (lb-in.): 12
Volt: 12
Weight (lbs.): 19
