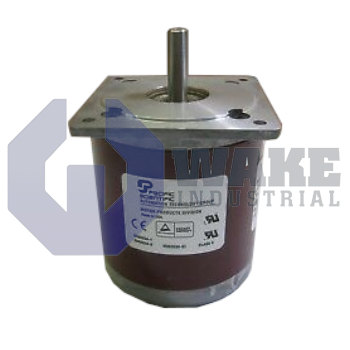

E32NRFA-LNN-NS-00

  • Rated 4.4 (18 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options

The E32NRFA-LNN-NS-00 is manufactured by Kollmorgen as a part of their E hybrid stepper motor series. Featuring up to 8 leads and a step accuracry of +/-1.5 %. Also featuring an insulation resistance of 100 Megohms and insulation voltage rating of 340Vdc.

Preparing your secure checkout page...

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

Kollmorgen manufacturing stays ahead of the competition—especially in the stepper motor market—with consistency and innovation in their new releases. The E32NRFA-LNN-NS-00 is one of the hybrid stepper motors produced by Kollmorgen, and being a part of their E-series, it features the innovative Sigmax technology. Sigmax-type motors have a higher torque efficiency than their counterparts, with the application of full flux linkages across their stators. This is achieved with the use of additional rare-earth magnets, placed strategically between each stator tooth. This blocks the flow of magnetic field around the stator teeth and concentrates the needed torque-producing flux on each stator tooth (where torque is generated). The efficiency of this technology has made Sigmax a renowned technology, which facilitates the manufacture of powerful steppers with small frames—like the E32NRFA-LNN-NS-00.

The E32NRFA-LNN-NS-00 has the following general specifications, based on its product code: it is a NEMA 34 category motor, with a diameter of 3.34 inches. It has a two-stack rotor, and the overall structure is supported with a standard NEMA mount. It features a regular/lead wire type of construction and is wound in a unipolar connection with 8 leads. It as an “A” winding type, a laminated rotor type, and a smooth shaft in a ‘single’ shaft configuration.

Since steppers are also considered in terms of their holding torque, detent torque, resolution, and other related characteristics, the E32NRFA-LNN-NS-00 is defined for the following performance specifications: a holding torque of 3.13Nm, due to its unipolar connection; this holding torque can, however, be improved in a bipolar series or parallel configuration. A detent torque of 0.3Nm, rotor moment of inertia of 0.12 ×10-3  kgm2, phase current, resistance and inductances of 4.0 A (D.C), 0.78 ohms and 3.7H respectively, and a weight of 2.41kg. Finally, this stepper comes with all standard parts, no shaft seal, and does not support encoder feedback.

  • E32NRFA LNN NS 00
  • E32NRFALNNNS00
  • E32NRFA-LNN-NS-OO

E32NRFA-LNN-NS-00 Technical Specifications

Full steps per Revolution: 200
Insualtion Voltage Rating: 340Vdc
Insulation Resistance: 100 Megohms
L Max.: 95.5mm
Leads: 8lead
NEMA frame size: 34
Step Accuracy %: +/-1.5 %
