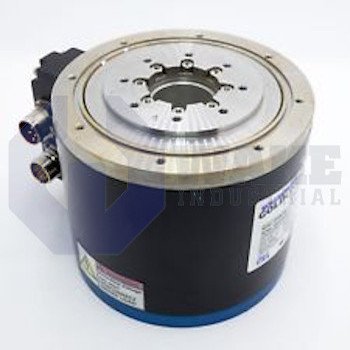

The Kollmorgen D101M-22-1310 is part of the DDR Direct Drive Motors series and features a single bearing design and flange mounting. The motor delivers a continuous torque of 34.6 Nm at 40 °C and a peak torque of 129 Nm, with a straight thru bore shaft and face coupling. It achieves a maximum operating speed of 300 rpm and weighs 31.5 kg.
Internal Product Review
The D101M-22-1310 is a Kollmorgen DDR direct drive motor delivering 34.6 Nm continuous torque and 129 Nm peak torque. Flange mounting and a straight thru-bore face-coupling shaft make the unit especially attractive for clean, rigid rotary-axis integration. Sub-arc-second repeatability gives the motor excellent positioning performance for demanding servo applications.
