The AKM44G-ACCNR-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 20.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 1.73 kW.

AKM44G-ACCNR-00

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The AKM44G-ACCNR-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 20.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 1.73 kW.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a AKM44G-ACCNR-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

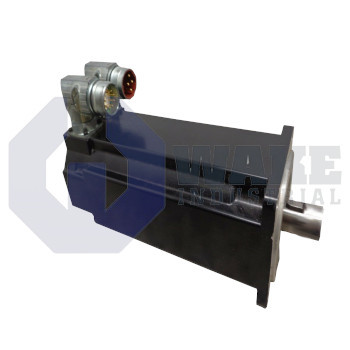

The AKM44G-ACCNR-00 motor features an IEC flange of size 84mm, G winding type, and Resolver feedback, shielded cables with angular connectors and IP 65 connectors, and shaft with keyway. It has a maximum mains voltage of 480 VAC, 5.88 Nm and 5.00A standstill torque and standstill current respectively. The rated speed is 5000min-1, rated torque is 3.19Nm, and rated power is 1.67kW. It has a weight of 5.3Kg, static friction torque of 0.05Nm, and 10 poles. The AKM44G-ACCNR-00 should be installed and commissioned by persons well-versed in drive technology or electrical engineering.

Ensure that the AKM44G-ACCNR-00 is free from mechanical stress especially during transportation. It is precision equipment making it vulnerable to vibration and shock. The shaft and flange are especially susceptible during assembly. Avoid brute force since it can lead to bearings and shaft damage. You should use backlash-free and frictionally-locking couplings during assembly. Ensure that they are aligned properly to avoid unnecessary vibration and bearings and coupling destruction. Avoid applying axial load since it significantly reduces the lifespan of the motor. The ventilation should be unhindered to enable optimum airflow and cooling of the motor. The insulation material conforms to the insulation class F and vibration class conforms to class N according to DIN EN 60034-14.

The AKM44G-ACCNR-00 comes in a brushless design making it a maintenance-free motor. The servo amplifier eliminates the need for brushes since it performs commutation electrically. This Kollmorgen motor comprises permanent magnets in the rotor with rare earth neodymium-iron-boron magnetic materials. They enable the motor to achieve high torque while enabling the SERVOSTAR amplifier to control it in a dynamic way. When used with the digital amplifier it is ideal for applications that require high dynamics and stability.

  • AKM-44G-ACCNR-00
  • AKM44G-ACCNR-OO

AKM44G-ACCNR-00 Technical Specifications

Frame Size: AKM4
Frame Size:
Max BUS (VDC): 640
Max Rated N: 6000
Max Rated Power at Max BUS: 1.73 kW
Max Stall Tc: 6.0 Nm
Max Tp: 20.4 Nm
Stack Length: 4
