The AKM43K-BSSNC-02 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 20.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 1.73 kW.

AKM43K-BSSNC-02

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The AKM43K-BSSNC-02 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 20.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 1.73 kW.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a AKM43K-BSSNC-02 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

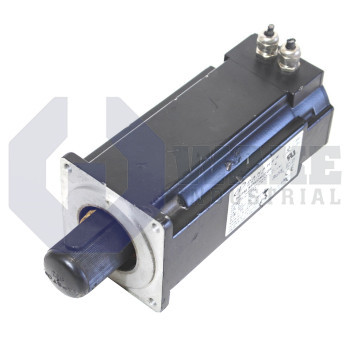

The AKM43K-BSSNC-02 brushless servo motor is a product of Kollmorgen Company. The company is a leading producer of technologies that significantly improve machine effectiveness and reduce production costs. The AKM43K-BSSNC-02 is a maintenance-free motor thanks to its brushless design. It features a flange size of 84mm, K winding type, and 3 rotor length. Its special shaft comprises a shaft seal. The connections found in this motor are special. It has a NEMA flange option. This AKM motor is designed to be used together with Kollmorgen AKD drives. The combination enables you to seamlessly choose the most ideal motion control products.

The AKM43K-BSSNC-02 presents you much-needed benefits such as high motor power density, the AKM/AKD system provides 47% more shaft power, low cogging, and compensation for stiff and compliant couplings and transmissions. It presents you with a wide array of options in mounting, feedback, connectivity, and other options. There are multiple mounting options that meet Japanese, North America, and European requirements. The smart feedback device (SFD) ensures that you meet specific requirements of the application at hand. Some of the options you can add to the AKM43K-BSSNC-02 include custom windings, holding brakes, feedback devices, and shaft variations, among others.

This Kollmorgen motor is preferred by many due to its high performance and flexibility. This feature allows it to be ideal for applications that need more than 120 windings and 8 frame sizes. Its technical parameters include a viscous damping of 0.017Nm/Krpm, static friction of 0.038Nm, and a weight of 4.35kg. it has a motor constant of 0.479N-m/W, torque constant of 1.72Nm/Arms, and 5 pole pairs. The AKM43K-BSSNC-02 is intended for industrial applications and should be used in ambient conditions.

  • AKM-43K-BSSNC-02
  • AKM43K-BSSNC-O2

AKM43K-BSSNC-02 Technical Specifications

Frame Size: AKM4
Frame Size:
Max BUS (VDC): 640
Max Rated N: 6000
Max Rated Power at Max BUS: 1.73 kW
Max Stall Tc: 6.0 Nm
Max Tp: 20.4 Nm
Stack Length: 3
