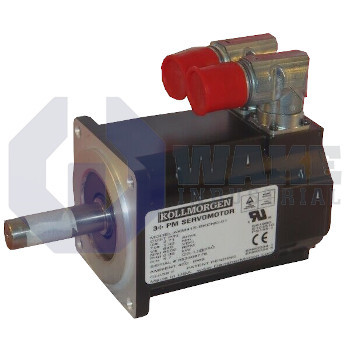

AKM41E-BKCNC-01

  • Rated 4.4 (29 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The AKM41E-BKCNC-01 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 20.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 1.73 kW.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

AKM41E-BKCNC-01

  • Rated 4.4 (29 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The AKM41E-BKCNC-01 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 20.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 1.73 kW.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a AKM41E-BKCNC-01 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Industries around the world rely on Kollmorgen for their motion control equipment. Industries look for platforms that deliver fast and accurate results and have a long service life. Kollmorgen’s products meet this criteria and fulfill the motion control requirements of competing industries around the globe. The company’s products are especially known for their solid built and fine finish.

The AKM41E-BKCNC-01 synchronous motor is used for servo applications in industries that heavily rely on automation. This motor is often employed in the textile industries, printing press, packaging industries and other areas where industrial robots are used. The motor is famous for its neodymium iron boron permanent magnets. These are the most powerful magnets that can be purchased from the market and they produce magnetic flux with a very high energy density. At a rated 6000 rpm speed, the motor can produce an 11.4 Nm peak torque. If the motor is operated at 3000 rpm then the shaft can take 450 N (radial) and 180 N (axial) loads at the shaft end.

When the AKM41E-BKCNC-01 is supplied with 400 V mains voltage, it can produce 0.56 kW power and 1.77 Nm torque. The motor is equipped with angular connectors and comes with the vibration class N according to the European EN standards. The climate category assigned to this model is 3K3 according to EN 50178. The motor’s performance parameters show no derating with a 5 ᵒC to 40 ᵒC temperature range. Above this range (from 40 ᵒC to 50 ᵒC), a power derating of only 1% occurs per kelvin rise in temperature. Overall, the AKM41E-BKCNC-01 is a perfect platform for industries that need heavy duty servo motors.

  • AKM-41E-BKCNC-01
  • AKM41E-BKCNC-O1

AKM41E-BKCNC-01 Technical Specifications

Frame Size: AKM4
Max BUS (VDC): 640
Max Rated N: 6000
Max Rated Power at Max BUS: 1.73 kW
Max Stall Tc: 6.0 Nm
Max Tp: 20.4 Nm
Stack Length: 1
