AKM33E-ANC2R-00

  • Rated 4.4 (38 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options
The AKM33E-ANC2R-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 10.22 Nm. The AKM series also featured a max rated force of 7000 and max rated power of 1.19 kW.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock! AKM33E-ANC2R-00

AKM33E-ANC2R-00

  • Rated 4.4 (38 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options
The AKM33E-ANC2R-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 10.22 Nm. The AKM series also featured a max rated force of 7000 and max rated power of 1.19 kW.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a AKM33E-ANC2R-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

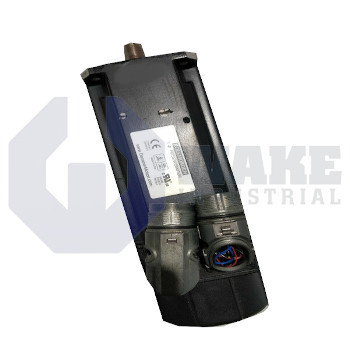

AKM synchronous servomotors are specifically manufactured for use in industrial settings such as textile and machine tools. The AKM33E-ANC2R-00 is part of this series under the AKM type. The AKM motors have a standstill torque between 1.15 and 2.88Nm and a flange size of 70mm. this Kollmorgen motor is designed to be driven by the SERVOSTAR servo amplifier under speed and/or torque control. It comes with rare earth neodymium-iron-boron magnetic material that enables the amplifier to drive it in a highly dynamic manner. The servo amplifier enables electrical commutation eliminating the need for brushes, making it a brushless design.

When the AKM33E-ANC2R-00 is combined with a servo amplifier it becomes ideal for positioning tasks in transfer lines and machine tools, among others. Its body comes coated with the matt back material which is not resistant against solvents such as trichloroethylene. While there are three distinctive mounting positions, IM B5, IM V1, and IM V3, it is recommended you use the IM B5 orientation. There are several options for the AKM33E-ANC2R-00 among them holding brake, keyway, radial shaft-sealing rings, and EnDat, Comcoder, SFD, and BISS. They can lead to a reduction of rated data.

This Kollmorgen motor features a winding type of E, IEC flange type, and a smooth shaft. Other features include angular connectors, holding brake of 24V, and resolver feedback. Its ambient conditions include an ambient operating temperature of 5 to 40 degrees, permissible humidity of 95% without condensation, and an installation elevation of 1000 meters above sea level. The ball-bearing life of the AKM33E-ANC2R-00 is capped at 20,000 operating hours. It weighs approximately 2.9kg and can support a permitted radial load of 195FR get it from Wake Industrial.

  • AKM-33E-ANC2R-00
  • AKM33E-ANC2R-OO

AKM33E-ANC2R-00 Technical Specifications

Product type: Motor
Thermal time constant: 20 min
Motor type: Synchronous
Standstill torque: 2.79 Nm
Standstill current: 2.58 Amps
Max input voltage: 480 VAC
Peak current: 10.3 Amps
Peak torque: 9.96 Nm
Poles: 8
Weight: 2.9 kg

Frequently Asked Questions about AKM33E-ANC2R-00


Q: What are the motor speed ratings?

A: The speed rating varies with input voltage: it is 2000 RPM at 230 VAC, 4500 RPM at 400 VAC and 5000 RPM at 480 VAC.

Q: What is the motor protection class?

A: The standard class is IP65 which increases to IP67 with shaft seal.

Q: Where is motor use prohibited?

A: Motor use is prohibited in explosive areas, directly on supply networks, and in environments with vapors, dust, corrosive acids, and alkaline solutions.

Q: What are motor applications?

A: AKM motor applications include machine tools, textile, packaging machinery, and industrial robots.

Q: How can you identify the motor and its specifications?

A: A nameplate on the motor allows easy identification of the product and its specifications.

Internal Product Review

  • ‘‘AKM33E-ANC2R-00 is a robust synchronous motor that is ideally suited to several industrial applications.’’
