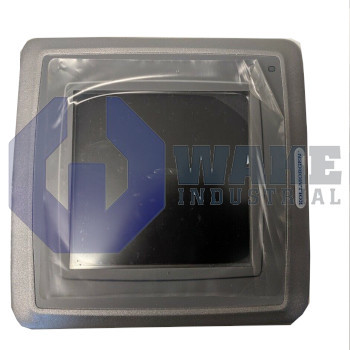

The AKI-CDT-MOD-06T-000 is an operator interface panel from Kollmorgen, part of the AKI Interface Panels series, featuring a 5.7-inch TFT-LCD display with a resolution of 320 by 240 pixels and 64K color depth. The panel has an IP66 rated front seal, a nominal supply voltage of 24 V DC, and supports Ethernet connectivity at 10/100 Mbit/s using a shielded RJ45 connector. It weighs 0.9 kg and includes a host type A USB 1.1 interface.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The AKI-CDT-MOD-06T-000 is a human-machine interface panel in the AKI Interface Panels series from Kollmorgen. Designed for flush mounting on machine enclosures, it combines operator push buttons, indicator lamps, and parameter screens in a single touchscreen interface that reduces the need for separate pilot devices on the door. Within an automation line, the unit exchanges data with motion controllers and drives, giving operators immediate visual feedback and allowing process variables to be adjusted without opening the cabinet. This layout makes the panel suitable for routine machine interaction, status review, and menu-based control from the front of the enclosure.
Electrical integration uses a 24 V DC nominal supply protected internally by a 2.0 AT, 5 × 20 mm fuse, and the panel draws up to 0.4 A during operation. Communication with supervisory networks is available through a shielded RJ45 connector that supports 10/100 Mbit/s Ethernet. The display is a TFT-LCD measuring 5.7 in diagonally and provides 320 × 240 px resolution on a 320 × 240-pixel raster. This screen format is suitable for alarm messages, status pages, and straightforward control menus. The panel requires a cutout of 180 × 130 mm, has a mounting depth of 57 mm, and uses a front panel size of 202 × 152 × 6 mm, which helps it replace legacy operator stations with minimal cabinet rework. The rear housing has IP20 protection, while the front surface uses a gasket for higher protection.
The front has an IP66 rating, which allows washdown cleaning and helps keep dust away from the touch sensor. The screen shows 64K colors, and a Host Type A port that operates at USB 1.1 can supply up to 500 mA for barcode readers or memory keys. Total mass is 0.9 kg, so the unit can be supported by standard thin-wall cabinet doors. The TFT display also offers a wide viewing angle, and the internal Ethernet magnetics are isolated from the 24 V logic supply. These features support stable operation where a compact panel is needed for local visualization and input.
Frequently Asked Questions about AKI-CDT-MOD-06T-000:
Q: What is the display size and type of the AKI-CDT-MOD-06T-000 panel?
A: The AKI-CDT-MOD-06T-000 interface panel features a 5.7-inch TFT-LCD display for clear visual output.
Q: What Ethernet options are available on the AKI-CDT-MOD-06T-000?
A: This model supports Ethernet connectivity via a 10/100 Mbit/s shielded RJ45 port.
Q: What is the IP rating of the front panel on the AKI-CDT-MOD-06T-000?
A: The front panel is rated at IP66, providing strong protection against dust and powerful water jets.
Q: What is the nominal supply voltage needed for the AKI-CDT-MOD-06T-000?
A: The nominal supply requirement for this unit is 24 V DC.
Q: What is the resolution and color depth of the AKI-CDT-MOD-06T-000 display?
A: The display offers a resolution of 320 x 240 pixels and supports 64K colors for vibrant graphics.
