Product Description

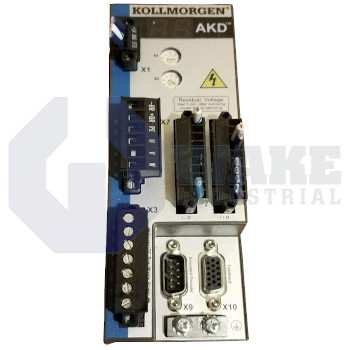

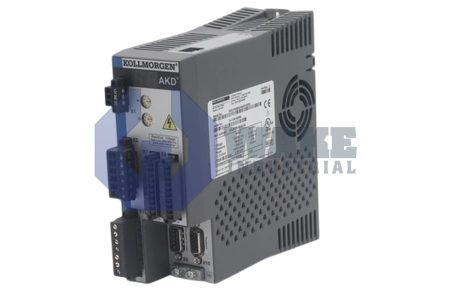

The AKD-P00606-NAAN-0000 is an AKD series servo drive from Kollmorgen, a renowned manufacturer of high performance servo drives and motors. This servo drive has a current rating of 6A and a voltage rating of 120VAC/240VAC. The drive supports both single-phase and three-phase connection. It has a size of 168 x 158mm (H x D) without connectors. The device is set to DHCP mode when both the S1 and S2 switches are set to 0. If the switch positions are altered when the unit receives a 24V logic power supply, the power supply must be switched off and turned on again. This will cause the IP address to reset. The servo drive should be operated inside a closed control cabinet with ventilation using an inbuilt fan that keeps the temperature inside the cabinet less than 40°C.

The servo drive is intended to be built into electrical machines or plants. The device makes use of copper conductors to help with the wiring process. The product helps in driving synchronous servomotors with speed, position or torque closed-loop control. The unit features a TCP/IP service channel onboard and a motion bus onboard. Its power section has an output stage IGBT module that is capable of measuring floating current. The drive has a pollution level of 2 according to IEC 60664-1 specifications. The relay outputs have an open/close time of 10ms.

The unit has a maximum inrush current of 10A. The servo drive has a maximum velocity loop bandwidth of 0kHz to 1,000kHz. The device highlights anF105 error code on its seven-segment display when the non-volatile memory is invalid or corrupt. This can be rectified by resetting the drive to its standard memory values using the Parameter Load option in the WorkBench software. The servo drive supports analog connectivity option. It features a Class 3K3 relative humidity of 5% to 85% without condensation during operation.
