VT-VSPA1-10-1X-V0-0 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R901152628
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat VT-VSPA1-10-1X-V0-0 is part of the VT-VSPA Proportional Amplifiers series, featuring a nominal supply voltage of 24 VDC and a maximum power consumption of 24 VA. The amplifier has a card size of 100 by 160 millimeters with a 48-pin DIN 41612 F connector and weighs 0.15 kg. It also supports a max output stage current of 1.9 A and a base clock frequency of 330 Hz with a 2 A fuse rating.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

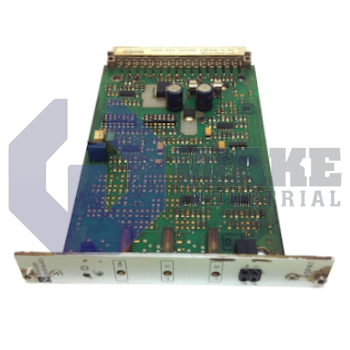

The VT-VSPA1-10-1X-V0-0 is a plug-in proportional amplifier card produced by Bosch Rexroth Indramat within the VT-VSPA Proportional Amplifiers series. Installed in a standard Eurocard rack, it conditions command signals and drives solenoids in directional or pressure control valves. By converting low-level analog inputs into a controlled current, the unit lets an automation controller vary hydraulic flow or pressure with repeatable accuracy. Its card format and ready output simplify integration into valve banks on industrial machinery.
Stable operation is based on a nominal supply of 24 VDC, with a permissible range from 18 to 35 V, so the amplifier remains functional during moderate bus fluctuations. The internal oscillator works at 330 Hz ±10%; this frequency sets the chopper rate for the output stage and minimizes dither on the valve spool. Total board demand never exceeds 2 A, while the power stage can deliver up to 1.9 A of controlled current to a single (Z)DRE 6… valve. A regulated reference of +10 V ±2% is provided for external potentiometers, and the zero adjustment trimmer allows a ±30% offset to match individual valve tolerances. A 2 A fuse protects the card from supply faults, and the ready output supplies 50 mA for system status annunciation.
This amplifier is built on a Eurocard that measures 100 × 160 mm, allowing direct insertion into 19-inch racks that follow IEC 60297. Signal and power lines are routed through a 48-pin DIN 41612 F connector, so no discrete wiring is needed on the module edge. The command channel presents a differential input impedance higher than 50 kΩ, which safeguards delicate analog sources against loading and noise coupling. Despite the integral power electronics, the board weighs only 0.15 kg, keeping cabinet mass low.
Frequently Asked Questions about VT-VSPA1-10-1X-V0-0:
Q: What is the nominal supply voltage required for the VT-VSPA1-10-1X-V0-0 amplifier?
A: The VT-VSPA1-10-1X-V0-0 amplifier operates on a nominal supply voltage of 24 VDC, ensuring compatibility with standard industrial power systems.
Q: What is the maximum output stage current on the VT-VSPA1-10-1X-V0-0?
A: This amplifier has a maximum output stage current of 1.9 A, suitable for driving proportional control valves.
Q: What is the regulated output voltage provided by the VT-VSPA1-10-1X-V0-0?
A: The regulated output voltage of this unit is +10 V with a ±2% tolerance, offering stable voltage for control circuits.
Q: What type of connector is used on the VT-VSPA1-10-1X-V0-0 amplifier?
A: VT-VSPA1-10-1X-V0-0 uses a 48-pin DIN 41612 F connector for interfacing with external systems.
Q: What is the maximum power consumption of the VT-VSPA1-10-1X-V0-0 amplifier?
A: The maximum power consumption for this amplifier is 24 VA, which helps in energy calculations for system integration.
