The VT-VPCD-1-16/V0/1-0-1 digital control unit is manufactured by Bosch Rexroth Indramat. This unit weighing 0.2 kg operates with 24 VDC voltage and 3.5 A current consumption. It is not equipped with a bus connection configuration.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

VT-VPCD-1-16/V0/1-0-1

  • Rated 4.5 (32 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R901044346
  • Call for Expedited Shipping and Product Condition Options
The VT-VPCD-1-16/V0/1-0-1 digital control unit is manufactured by Bosch Rexroth Indramat. This unit weighing 0.2 kg operates with 24 VDC voltage and 3.5 A current consumption. It is not equipped with a bus connection configuration.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a VT-VPCD-1-16/V0/1-0-1 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

As seen in its portfolio of highly efficient products, industrial hydraulics is one branch of engineering where Bosch Rexroth thrives. One of these products is the VT-VPCD digital controller amplifier, an electrical component used to achieve the electrical functions required for HS4 control.

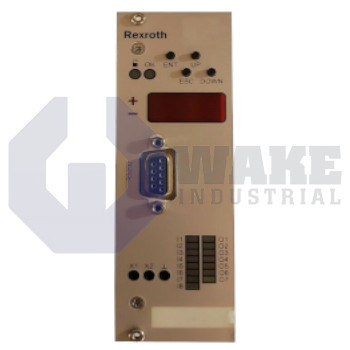

The VT-VPCD-1-16/V0/1-0-1 is a model of the Bosch Rexroth digital controller amplifiers built in the Euro-card format. It is a double-sided printed circuit board of 100mm width and 160mm length. Its features include ramp times for swivel angle and pressure command values and digital inputs for calling pre-set parameters. The operating voltage for its operation is 24 VDC with a tolerance between +40% and –10%. Its oscillator frequency is approximately 5kHz, while the nominal resistance of its solenoid at 20°C is 2 Ohms. The ideal connector for this amplifier’s electrical connections is a 64-pin male edge connector based on the DIN 41 612, form G.

Parameterizing and configuring the VT-VPCD-1-16/V0/1-0-1 is done with the smart BODAC software tool for PC. The software is a freely downloadable tool that works with the RS 232 9-pin D-sub socket in front of the amplifier to carry out several functions. These include the configuration of switching outputs, the selection of the pump size, and the activation or deactivation of leakage compensation and sequence control. There are two freely configurable measuring sockets on this model that are used to signal process signals. They can be configured using the BODAC software or the display unit on the digital controller amplifier. This display unit has four keys used to carry out various configuration procedures and access the amplifier’s functions via its menu structure.

  • vt-vpcd-1-16/v0/1-0-1

VT-VPCD-1-16/V0/1-0-1 Technical Specifications

Bus Connection: Not Equipped
Card dimensions: Euro-card 100 x 160 mm, DIN 41494
Current Consumption: 3.5 A
Operating voltage: 24 VDC
Weight: 0.2 kg
Protection class according to EN 60529: IP 65
Current consumption per solenoid: 2.5 A
Electrical connection: Plug-in connection according to DIN EN 175301-803
Operating voltage: 24 VDC
Admissible ambient temperature rangeNULL: 0 to 50 degrees celsius

Frequently Asked Questions about VT-VPCD-1-16/V0/1-0-1


Q: What are the main features of this model?

A: The VT-VPCD-1-16/V0/1-0-1 is a compact device in Eurocard format. It has ramp times for pressure command values and swivel angle. The system also has digital inputs for preset parameters and a 64-bit male edge connector.

Q: Can the system be used with different types of voltage inputs?

A: The VT-VPCD-1-16/V0/1-0-1 amplifier operates on a 24 VDC and has a tolerance range of 40% to -10%. This ensures that a broad range of voltage supplies are compatible with the system.

Q: What is the purpose of the BODAC software used in the system?

A: The VT-VPCD-1-16/V0/1-0-1's BODAC software helps in parameterizing and configuring the amplifier. The software can be downloaded for free and works via a RS239-pin-D-sub socket.

Q: Can the amplifier be customized for different applications?

A: Yes, the VT-VPCD-1-16/V0/1-0-1 can be customized via the BODAC software and its two freely configurable measuring sockets.

Q: How easily can the amplifier be configured on site?

A: The VT-VPCD-1-16/V0/1-0-1's onsite configuration is intutive and user friendly because of its display unit and four keys for the configuration process.

Internal Product Review

  • β€˜β€˜The VT-VPCD-1-16/V0/1-0-1 proves to be a reliable component of the HS4 control because of its Eurocard format and compact design. The system has advanced functionality and comes with a smart BODAC software.’’
