VSP40.3ALG-1G0NN-C2D-DE-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911171127
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

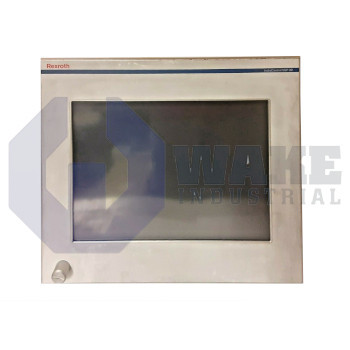

The Bosch Rexroth Indramat VSP40.3ALG-1G0NN-C2D-DE-NN-FW is part of the VSP IndraControl Terminals series and weighs 7.5 kilograms. It features a 15 inch TFT display with a resolution of 1024 x 768 and operates with a Celeron 440 CPU clocked at 2 GHz. The terminal provides 1 GB of application memory, 2 Ethernet ports, and 8 USB 2.0 ports, all housed in a unit with IP65 front protection and IP20 rear protection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The VSP40.3ALG-1G0NN-C2D-DE-NN-FW operator terminal is produced by Bosch Rexroth Indramat within the VSP IndraControl Terminals series. Designed as an industrial PC with an integrated display, it forms the front end of automation lines, letting operators monitor status, acknowledge faults, and adjust setpoints without entering the control cabinet. Its rugged housing supports mounting on swing arms or enclosures so the workstation can be positioned close to conveyors, presses, or assembly stations where immediate feedback is required.
The terminal is driven by a Celeron 440 processor running at 2 GHz, a configuration that balances deterministic execution with low thermal output. Paired with 1 GB of application memory, the CPU executes visualization software, recipe handling, and local data buffering. Graphics are rendered on a 15 in TFT panel at 1024 × 768 pixels, providing adequate space for multiple windows while keeping refresh demands modest. The machined aluminum front meets the IP65 ingress rating so dust and water jets do not affect the touchscreen, whereas the rear section carries an IP20 rating for cabinet-side ventilation. Five conventional PCI slots and a single PCIe slot support add-on fieldbus, motion, or vision cards, and the electronics stay within a 200 W input power envelope during peak visualization loads.
Networking and service connections are handled by 2 × 1 Gbit/s Ethernet ports for deterministic fieldbus tunnels and by 8 × USB 2.0 receptacles that accept memory sticks or touch-sensor dongles. The system is supplied from a 24 VDC power bus used throughout machine panels, eliminating the need for an internal AC supply. A footprint of 407 × 370 × 171 mm and a weight of 7.5 kg keep the unit suitable for swing-arm or enclosure mounting while maintaining clearance for cable bends and service access.
Frequently Asked Questions about VSP40.3ALG-1G0NN-C2D-DE-NN-FW:
Q: What processor and clock speed does the VSP40.3ALG-1G0NN-C2D-DE-NN-FW utilize?
A: This terminal is equipped with a Celeron 440 processor running at 2 GHz for responsive multi-tasking.
Q: What are the display specifications of the VSP40.3ALG-1G0NN-C2D-DE-NN-FW terminal?
A: The display is a 15-inch TFT panel offering a resolution of 1024 x 768 pixels for clear visual output.
Q: How many and what type of Ethernet ports does this model provide?
A: The VSP40.3ALG-1G0NN-C2D-DE-NN-FW provides two Ethernet ports, each supporting 1 Gbit/s data rates.
Q: What are the protection ratings of the VSP40.3ALG-1G0NN-C2D-DE-NN-FW terminal?
A: This terminal features IP65 protection on the front and IP20 protection on the rear for environmental safety.
Q: How many USB ports does the VSP40.3ALG-1G0NN-C2D-DE-NN-FW terminal include and what type are they?
A: There are 8 USB 2.0 ports available on this model for peripheral connectivity.
