Product Description:

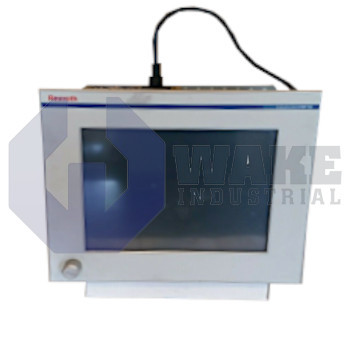

The Bosch Rexroth Indramat VSP16.1AKE-512NN-C1D-BE-NN-FW is an industrial terminal in the VSP IndraControl Terminals series. Designed for cabinet front mounting, it serves as a combined computer and operator interface that executes visualization software, accepts touch commands, and exchanges data with connected drives and controllers. By integrating processing electronics, a color display, and field wiring points inside one housing, the unit streamlines control-cabinet layouts and presents real-time machine status to production personnel. The integrated format also reduces the number of separate devices required at the cabinet door and keeps display, control, and computing functions in one place.

Computing resources consist of a Celeron CPU and 512 MB of RAM, which is suitable for HMI runtimes and recipe management. Operator feedback appears on a 12 in panel that presents graphical objects at 800 x 600 px and renders up to 256,000 colors, so process variables are clearly distinguished without external monitors. The touch screen is the sole input method, allowing button, slider, and numeric entry directly on the glass. For local data storage and software loading, there is a CD-RW disc drive, and two Type A USB ports accept memory sticks or service peripherals. This arrangement suits local visualization tasks where operators need direct access to alarms, trends, and process screens.

Field connectivity starts with a 1 x RJ45 interface operating at 10/100 Base-T, and it links the terminal to plant SCADA or controller networks. A nine-pin RS232 port supports barcode readers or legacy drives, and internal slots accommodate 6 x PCI cards for proprietary I/O or motion boards. Power is supplied at 24 VDC, matching typical control-cabinet bus rails. The panel face measures 360 mm in width by 300 mm in height and projects 208 mm into the enclosure, so cabinet door clearances can be calculated accurately. An IP65 rating on the front protects the screen and membrane seals from dust and low-pressure water jets, allowing installation on washdown machine surfaces without an additional bezel.
