Product Description:

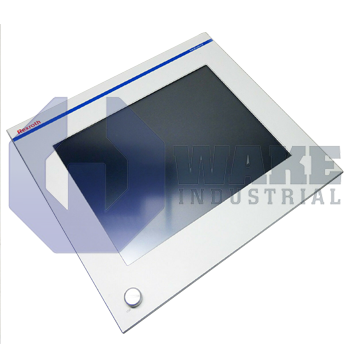

The VPP16.3AKM-2G0NN-D4D-HE-NN-FW operator terminal is produced by Bosch Rexroth Indramat within the VPP IndraLogic Terminals series. Designed as a combined visualization and control panel, it integrates into machine cells and assembly lines to present process data and accept operator commands. A thin-film transistor display shows 256,000 colors, and the rear panel electronics are protected to the IP20 level. The unit accepts direct video through a single VGA port and peripheral expansion through one front and six rear USB connectors. Its electrical input range spans 19 V DC to 30 V DC, making it suitable for use on conditioned DC supply rails.

Performance for application logic, motion coordination, and image rendering is supplied by a Core i5-520M processor running at 2.4 GHz. Operators view status on a panel with an active diagonal of 30.5 cm (12 in) and a native resolution of 800 × 600 pixels, which suits standard HMI layouts and clearly organized process screens. The front face and touchscreen meet IP65, allowing washdown exposure at the operator side without exposing internal electronics. Internal dissipation under full load is limited to 160 W, so enclosure airflow or panel cooling must be sized to remove that heat during continuous operation.

The nominal supply rail of 24 V DC is regulated locally to support memory, I/O, and field interfaces. Application data and real-time variables are buffered in 2 GB of DDR memory, which supports compact HMI runtimes and recipe storage. Four expansion slots listed as 4 × PCI permit installation of fieldbus or additional graphics cards, while dual network connectors marked 2 × Ethernet TCP/IP provide separate links for plant networks and service access. Separate network paths can help keep routine communication apart from maintenance connections during normal machine operation.
