VMA 090DR 001-D

  • Rated 4.6 (31 total ratings)
  • MPN: 1070070784
  • Call for Expedited Shipping and Product Condition Options
The VMA 090DR 001-D Supply Module is manufactured by Rexroth Indramat Bosch. The Modular Inverter is With energy recovery for backplane modules and the Supply Voltage is 400?460 VAC. The Current Input for this module is 3.1A and the Module Width is 200 mm.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

VMA 090DR 001-D

  • Rated 4.6 (31 total ratings)
  • MPN: 1070070784
  • Call for Expedited Shipping and Product Condition Options
The VMA 090DR 001-D Supply Module is manufactured by Rexroth Indramat Bosch. The Modular Inverter is With energy recovery for backplane modules and the Supply Voltage is 400?460 VAC. The Current Input for this module is 3.1A and the Module Width is 200 mm.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a VMA 090DR 001-D to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

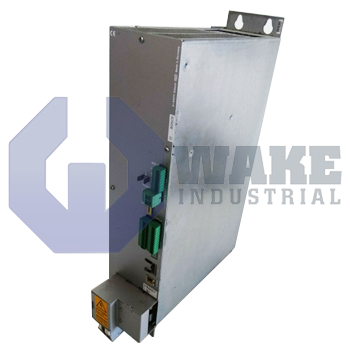

The VMA 090DR 001-D by Bosch Rexroth is an air-cooled VM supply module with a module width of 200 mm. It features a sinusoidal recovery mechanism, and it belongs to the Servodyn-D series. By mass, the VMA 090DR 001-D weighs approximately 18 kgs, and its peak power output is 97 kW. Plus, its rated power at an ambient temperature of 45 oC is 57 kW. The rated mains current of this equipment is 83 Amperes at 45 oC. Its supply voltage is 3 x 400...460 ± 10%, at 48 – 62 Hertz. The voltage supply of this model of the VMA series is 400 V AC at 50 Hertz.

The VMA 090DR 001-D Rexroth VM supply module is connected to a 24V supply unit with a current rating of 3.1 Amperes. In the switch cabinet, the power loss of this equipment has a max. value of 0.97 kW. This air-cooled design is rated for operation at environmental temperatures within the range of -20 oC to 45 oC. It is suitable for use at an altitude ≤ 1000 meters above sea level. The VMA 090DR 001-D should not be operated in potentially explosive environments and must only be used in industrial or commercial systems. It features a warning and status display unit.

Any software and/or hardware intervention on the VMA 090DR 001-D must be carried out by certified personnel, as recognized by the IEV 826-09-01 standards. When operating this supply module, it must comply with the documented safety guidelines and operating conditions. All low-voltage directives and harmonized standard requirements must be followed to enhance the operating efficiency of the VMA 090DR 001-D. This unit can be shipped globally with a one-year warranty period from Wake Industrial.

VMA 090DR 001-D Documents

  • VMA090DR001-D
  • VMA 090DR 001 D
  • vma 090dr 001-d

VMA 090DR 001-D Technical Specifications

Current Input: 3.1A
Modular Inverter: With energy recovery for backplane modules
Module Width: 200 mm
Supply Voltage: 400?460 VAC
