The VCP08.2DTN-003-NN-NN-PW screen panel is manufactured by Bosch Rexroth Indramat. This panel operates with 24 V DC supply voltage, 3 MB application memory, 39 Keys, and a maximum voltage of 30 V.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

VCP08.2DTN-003-NN-NN-PW

  • Rated 4.4 (30 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911311497
  • Stock: Available
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options
The VCP08.2DTN-003-NN-NN-PW screen panel is manufactured by Bosch Rexroth Indramat. This panel operates with 24 V DC supply voltage, 3 MB application memory, 39 Keys, and a maximum voltage of 30 V.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a VCP08.2DTN-003-NN-NN-PW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Bosch Rexroth is a seasoned manufacturer of industrial control units, control panels, and operating terminals.

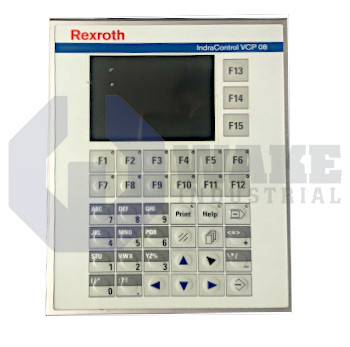

The VCP08.2DTN-003-NN-NN-PW comes from the VCP series of compact operator terminals. The VCP terminals support integration with serial bus and Fieldbus interfaces. The device has been designed for different applications so it can be mounted in any desired position. The operator terminal is used to initiate specific functions in machines. The commands can be input through a membrane keyboard that has a total of 39 input keys. 15 status LEDs are also provided with this device. This model supports the DeviceNet and PROFIBUS DP interfaces. The interface slots are galvanically isolated. The device has the RISC ARM9 central processing unit that has a 200 MHz clock frequency. The central processing unit is also equipped with a real-time clock, a watchdog timer, and battery monitoring. The SRAM and SDRAM have a memory of 512 KB respectively. The application memory is 3 MB that is in addition to a 16 MB flash memory.

The VCP08.2DTN-003-NN-NN-PW uses the D-SUB and Phoenix COMBICON connectors. In addition, an RJ45 female connector and USB female connector is also provided. At 24 V supply, this operating terminal consumes 0.25 A current. The connected load is 6 W and the maximum power consumption is 0.35 A. The panel has a significant display area (57.6 mm x 76.8 mm / H x W). The FSTN display type is used in this model and the contrast setting is temperature compensated and backlighting half-life is 30,000 hours. The display offers a 320 x 240 pixels resolution and five different shades of gray color are displayed on the screen. This unit can be shipped globally with a one-year warranty period from Wake Industrial.

  • VCP082DTN003NNNNPW
  • VCP08 2DTN 003 NN NN PW
  • vcp08.2dTn-003-nn-nn-pw
  • VCP8.2DTN-003-NN-NN-PW

VCP08.2DTN-003-NN-NN-PW Technical Specifications

Application Memory: 3 MB
Operating Temperature Range: (+5 to +45) degree centigrade
CPU: RISC ARM9
Clock Frequency: 200 Mhz
SRAM: 512 KB
DRAM: 512 KB
Flash Size: 16 MB
Terminal Current Consumption: 0.25 A
Display Type: FSTN
Display Resolution: 320 x 240 pixels

Frequently Asked Questions about VCP08.2DTN-003-NN-NN-PW


Q: What interfaces does the VCP08.2DTN-003-NN-NN-PW support?

A: The VCP08.2DTN-003-NN-NN-PW supports DeviceNet and PROFIBUS DP interfaces, making it suitable for various industrial applications. These interfaces facilitate seamless integration and communication with other devices, ensuring reliable data transfer and system control.

Q: Can the VCP08.2DTN-003-NN-NN-PW be mounted in different positions?

A: Yes, this operator terminal has been designed for diverse applications and can be mounted in any desired position. Its versatile design ensures compatibility with a range of industrial settings, allowing for flexible installation and optimal usability in different environments.

Q: What are the input and display features of the VCP08.2DTN-003-NN-NN-PW?

A: The device comes with a membrane keyboard featuring 39 input keys and 15 status LEDs, enabling clear and efficient user input and status indication. The display area measures 57.6 mm x 76.8 mm (H x W) and uses an FSTN display type with a temperature-compensated contrast setting.

Q: What connectors are available on the VCP08.2DTN-003-NN-NN-PW?

A: The terminal uses D-SUB and Phoenix COMBICON connectors and also provides an RJ45 female connector and a USB female connector. These connectors offer versatile connectivity options for various peripheral devices.

Q: What is the power consumption of the VCP08.2DTN-003-NN-NN-PW?

A: At a 24 V supply, the operating terminal consumes 0.25 A current, with a connected load of 6 W and a maximum power consumption of 0.35 A. These power specifications indicate efficient energy usage, making it a cost-effective and eco-friendly choice for industrial applications.
