VAM42.1-PB-NF-AB-TB-VD-EK-1608-D1

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911171655
The VAM42.1-PB-NF-AB-TB-VD-EK-1608-D1 Operator Panel is manufactured by Rexroth Indramat Bosch, and has 16 inputs and 8 outputs on the masterboard. The encoder for this panel is PROFIBUS-DP, and another design is Availible for this model.

VAM42.1-PB-NF-AB-TB-VD-EK-1608-D1

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911171655
The VAM42.1-PB-NF-AB-TB-VD-EK-1608-D1 Operator Panel is manufactured by Rexroth Indramat Bosch, and has 16 inputs and 8 outputs on the masterboard. The encoder for this panel is PROFIBUS-DP, and another design is Availible for this model.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a VAM42.1-PB-NF-AB-TB-VD-EK-1608-D1 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

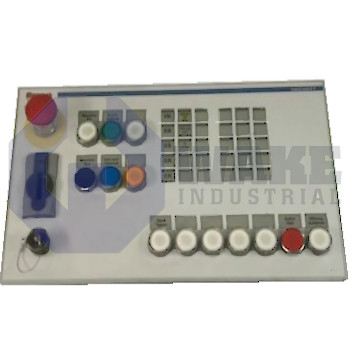

The VAM42.1-PB-NF-AB-TB-VD-EK-1608-D1 machine control panel has 10 assembly breakouts for switch elements. It features a PROFIBUS DP communication bus interface and a motherboard with 16 digital inputs and 8 digital outputs. The device has a size of 102 x 350 x 240 mm and weighs 1.4kg. There are 10 cutouts for switching elements of 25mm size. The unit is used to operate control panels in CNC machines. The electronic key system features a data transmission rate of 9.6k baud and a transmission protocol of 3964R. Coming with a one-year warranty, this device has a maximum capacity of 2nF and a maximum switching current of 50mA per output.

The product has an overvoltage category of 2. It is CSA Certified and UL Listed. The unit must have a clearance of at least 50mm at the rear side for cable routing and cooling. The panel must not be installed in areas where additional heat development can take place. The labels for the indicator and control units as well as the machine function keys can be printed on paper or transparent foil and inserted on the backside of the device. The emergency stop function must be checked cyclically through activation of the Emergency Stop button.

The Override VD module comes fitted with two rotary switches. The machine control terminal has a mounting cutout size of 208 x 375 mm (H x B). The device has an ambient storage and transport temperature range of -20°C to +60°C. The switching contacts of the electronic key system have a connection type of 2 x 2-pin screw terminals. The semiconductor relay outputs have a typical difference time of 200ms. The machine control panel can be safely shipped anywhere across the globe.

  • VAM421PBNFABTBVDEK1608D1
  • VAM42 1 PB NF AB TB VD EK 1608 D1
  • vam42.1-pb-nf-ab-tb-vd-ek-1608-d1

VAM42.1-PB-NF-AB-TB-VD-EK-1608-D1 Technical Specifications

Encoder: PROFIBUS-DP
Masterboard: 16 inputs and 8 outputs
Other Design: Availible
