Product Description:

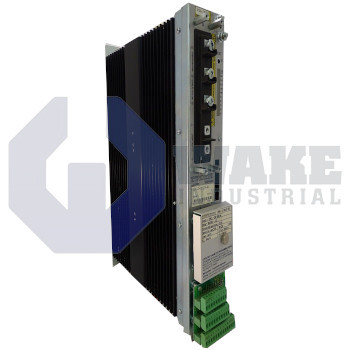

The TDM 3.3-030-300-W1 is a servo drive module produced by Bosch Rexroth Indramat for the TDM Servo Drive Modules series. It converts the fixed DC supply of an industrial cabinet into regulated three-phase output for synchronous and induction motors, providing the current loop and monitoring functions needed in automated machine tools, material-handling axes, and packaging lines. By integrating gate control, temperature sensing, and fault signaling, the unit acts as the interface between a higher-level motion controller and the motor power conductors, ensuring stable torque delivery during continuous or cyclic operation.

The drive supplies a continuous output of 9 kW while drawing energy from a DC bus maintained at 300 VDC. Under rated conditions, it delivers 25 A to the motor windings, and it can momentarily rise to 30 A for acceleration or shock loads. Internal IGBTs and shunt resistors are cooled by forced ventilation, and airflow through the heat sink helps prevent thermal shutdown when cabinets are densely packed. Logic electronics are supported by separate signal rails that load the −15 V, +15 V, and +24 V supplies by 55 mA, 125 mA, and 800 mA respectively. A start-lockout path rated at 20 mA and 0.5 W disables gate firing after a fault until the control voltage is reset, protecting downstream equipment from unintended restarts.

Total dissipation inside the housing is limited to 175 W, so enclosure layout must allow the fan to exhaust heated air without obstruction. Reliable service is specified up to 55 °C ambient, and performance beyond that level may require derating or cabinet cooling. The aluminum housing has a protection rating of IP 10, which prevents entry by large solid objects while allowing unrestricted airflow. With a transport weight of 8 kg, the module can be mounted on DIN rails or bolted panels while still accommodating the power components and wiring terminals needed for 300 VDC bus links and motor leads.
