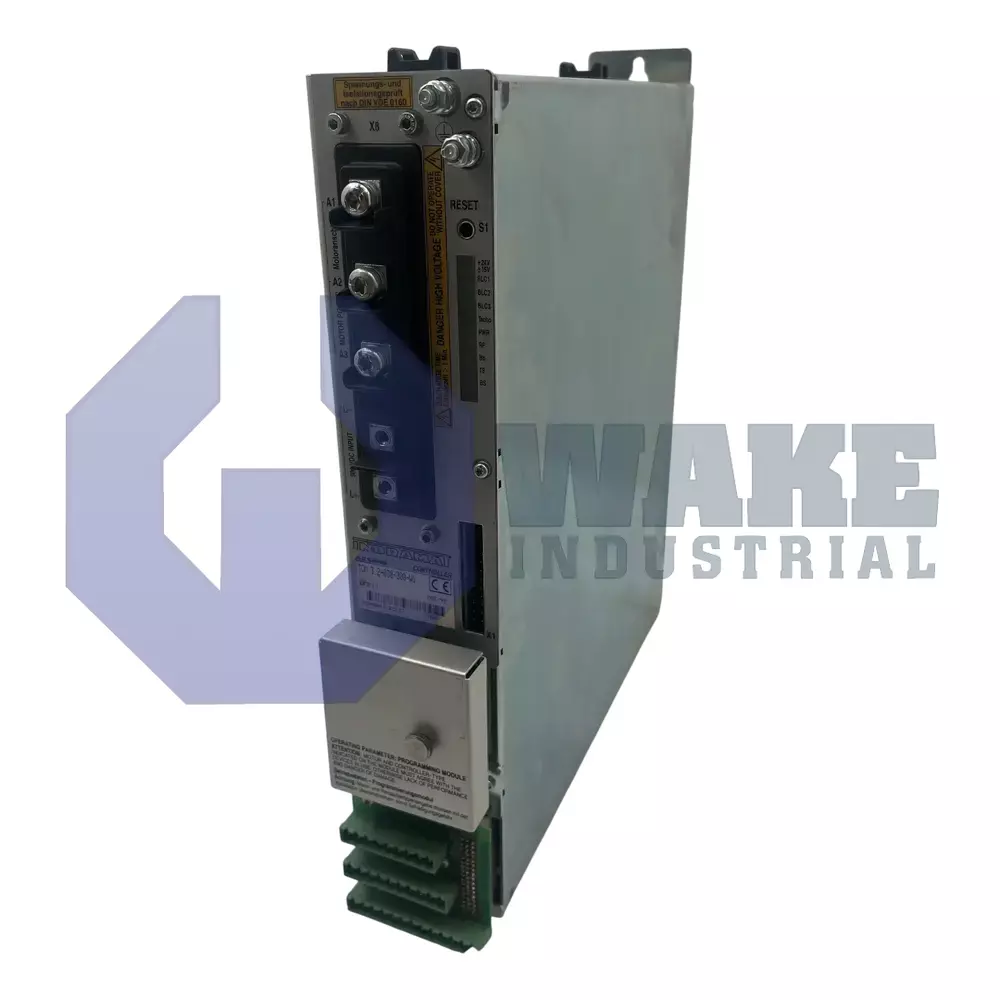

The Bosch Rexroth Indramat TDM 3.2-030-300-W1 is part of the TDM Servo Drive Modules series and weighs 8 kilograms. It delivers a continuous current of 25 amps and a continuous power output of 9 kilowatts. This module uses forced ventilation for cooling and has an IP10 protection rating, with a link circuit voltage of 300 VDC.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The TDM 3.2-030-300-W1 is a servo drive module manufactured by Bosch Rexroth Indramat for the TDM Servo Drive Modules series. It forms the controlled power interface between the plant’s DC bus and an Indramat synchronous motor, converting stored link-circuit energy into three-phase output so automated axes can accelerate, brake, and hold position under CNC or PLC command. By integrating current regulators and fault monitoring in one 50 mm wide housing, the module simplifies cabinet layouts and supports coordinated multi-axis motion in presses, packaging machines, and material-handling cells.
At the motor terminals, the drive can supply a continuous armature current of 25 A, and its type designation permits momentary loading up to 30 A for rapid speed changes. With that current window, it sustains a mechanical output of 9 kW while drawing energy from a link circuit held at 300 VDC ±15%. Cooling is provided by a built-in channel that relies on forced ventilation, and a single auxiliary fan unit must be mounted to keep internal component temperatures within insulation class C. Under rated load, the power section dissipates only 175 W, which helps limit cabinet heat buildup. The module is suitable for humidity class F. Signal supplies are available on the front connector, delivering −15 V at 55 mA, +15 V at 125 mA, and +24 V on X43 at 50 mA for encoder or sensor electronics.
Environmental parameters match general-purpose factory floors, and the module operates without derating up to 55 °C ambient while allowing installation at altitudes of up to 1000 m above sea level. Its enclosure carries a protection rating of IP 10, meaning live parts are guarded against accidental finger contact when the unit is installed in a closed control cabinet. Despite the integrated electronics and cooling channel, the overall mass is only 8 kg, which supports dense mounting on DIN rails or backplanes.
Frequently Asked Questions about TDM 3.2-030-300-W1:
Q: What is the continuous power output of the TDM 3.2-030-300-W1 servo drive module?
A: The TDM 3.2-030-300-W1 has a continuous power output rating of 9 kW.
Q: What cooling method is used by the TDM 3.2-030-300-W1?
A: This drive module uses forced ventilation for cooling.
Q: What is the maximum ambient temperature the TDM 3.2-030-300-W1 can operate in?
A: The TDM 3.2-030-300-W1 is rated for a maximum ambient temperature of 55 °C.
Q: What is the maximum allowable mounting altitude for the TDM 3.2-030-300-W1?
A: It can be mounted up to a maximum altitude of 1000 meters.
Q: What is the protection rating of the TDM 3.2-030-300-W1 module?
A: The protection rating for this drive module is IP 10.
