TDM 3.2-020-300-W0
MPN: R911233712
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships Today

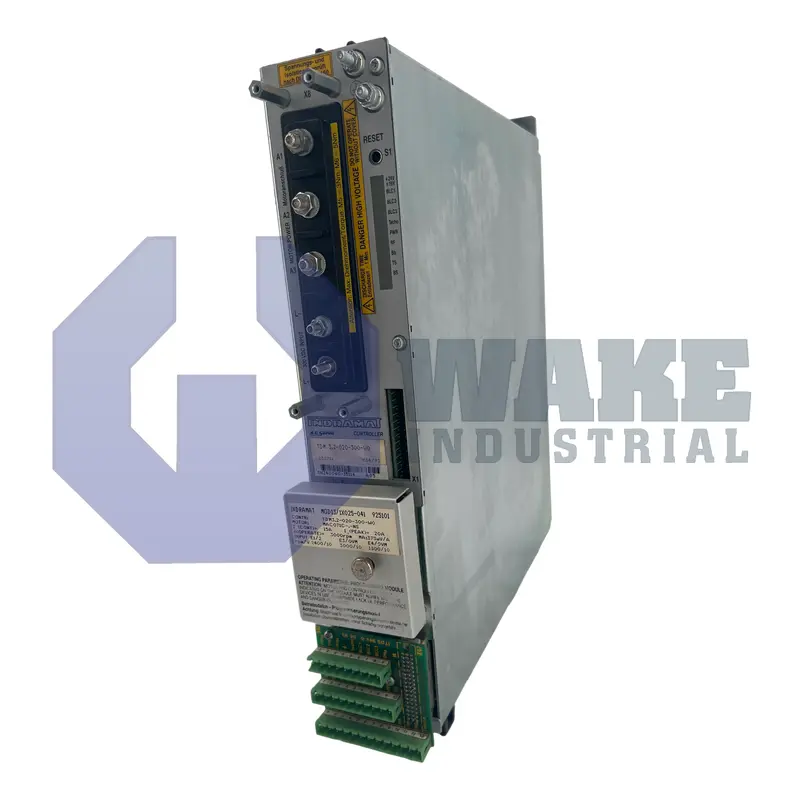

TDM 3.2-020-300-W0 is a servo drive. It works with MAC motors. Rated current output of the unit is 20 Amps.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
TDM 3.2-020-300-W0 is a Bosch Rexroth TDM series servo drive. It works with MAC motors, specifically with motors from the MAC 63 to MAC 112B series. The drive unit requires 300 Volts DC input, which is supplied by a power module. The drive supplies three-phase output to the connected MAC motor. Rated current output of the unit is 20 Amps. The peak output current is 20 Amps and the continuous output current is 15 Amps. Power output rating of the drive unit is 6 kilowatts. The specified power loss at continuous output current is 110 Watts. Without external load, the current consumption of the signal processing circuits at 24 Volts DC is 400 milliamps. The current consumption of the signal processing circuits at 15 Volts DC is 120 milliamps.
The current consumption of the signal processing circuits at -15 Volts DC is 50 milliamps. The drive unit supports natural convection cooling. It requires 5 to 45 degrees Celsius for rated output. Higher output temperatures lead to output derating. The recommended site altitude for rated output is 0 to 1000 meters. Higher altitudes lead to output derating. Weight of the TDM 3.2-020-300-W0 is 8 kilograms. The drive is available in an IP10 rated enclosure designed for vertical mounting inside a suitable control cabinet. Improper installation and handling can lead to equipment damage and injury to personnel. To ensure safe and reliable operation, only qualified technical personnel should work with TDM servo drives. Relevant instructions related to system operation and safety are listed in the product document. All personnel work on the TDM 3.2-020-300-W0 must read, understand and implement manufacturer instructions. Failure to comply can lead to damage and serious injury.
Frequently Asked Questions about TDM 3.2-020-300-W0:
Q: Which motors are compatible with TDM servo drives?
A: MAC 63 to MAC 112B motors are compatible with TDM 3 series drives.
Q: What type of input supply does the servo drive require?
A: The servo drive requires 300 Volts DC input.
Q: What supplies power for the servo module?
A: A power supply module supplies DC power for the servo drive.
Q: What is the output of the servo drive?
A: The servo drive supplies three-phase output to the MAC motor.
Q: What is the mounting orientation?
A: The mounting orientation of TDM drives is vertical.
