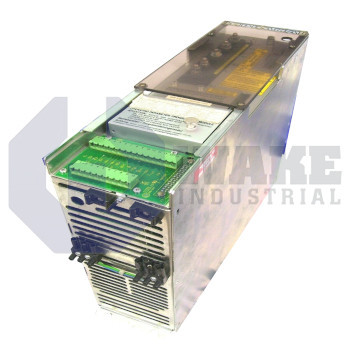

TDM 1.4-100-300-W1-0 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911252041
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
2 Seconds
The Bosch Rexroth Indramat TDM 1.4-100-300-W1-0 is part of the TDM Servo Drive Modules series. It features a built-in fan cooling method, has a DC bus voltage of 300 VDC with a current rating of 100 Amps, and an IP10 protection rating. The module supports operation up to 1000 meters mounting altitude and is rated for temperatures up to 55 degrees Celsius.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The TDM 1.4-100-300-W1-0 servo drive module belongs to the TDM Servo Drive Modules series from Bosch Rexroth Indramat. It serves as the power interface between numerical controllers and three-phase motors, producing regulated phase currents so automated axes follow commanded torque and speed profiles. By rectifying mains input and modulating the resulting DC link, the unit supports dynamic motion control for machine tools, packaging lines, and material-transfer stations in the high-current drive class. Its drive electronics include firing circuits, current monitors, and integrated diagnostics that report real-time fault states and operating data to the supervisory controller over the series backplane.
A self-contained built-in fan moves air across the heat sinks, removing switching-loss heat without external ducting. The internal link voltage is rated at 300 VDC, and the permissible variation window of ±15% lets the module tolerate moderate supply fluctuations. During acceleration or braking, the current regulators can deliver up to 100 A of phase current, matching medium-power servo motors. An enclosure protection level of IP10 indicates that solid objects larger than 50 mm are blocked while airflow remains unrestricted for thermal management.
Continuous operation is permitted up to 55 °C ambient when derating rules are observed, and installation heights may reach 1000 m above sea level before output must be reduced. The module is approved for environments that meet Humidity Class F, so condensation must be prevented during storage and service. The DC bus capacitors provide energy storage for regenerative peaks, while the internal cooling path helps keep component temperatures within the normal operating range. This arrangement supports stable current response during changing load conditions.
Frequently Asked Questions about TDM 1.4-100-300-W1-0:
Q: What cooling method does the TDM 1.4-100-300-W1-0 utilize?
A: A built-in fan is used to cool the TDM 1.4-100-300-W1-0 drive module.
Q: What is the DC bus voltage for the TDM 1.4-100-300-W1-0 servo drive module?
A: The DC bus voltage for this drive is 300 VDC, allowing stable power delivery.
Q: What is the type current rating for the TDM 1.4-100-300-W1-0?
A: This module is rated for continuous operation at a current of 100 A.
Q: What is the maximum mounting altitude for the TDM 1.4-100-300-W1-0?
A: The TDM 1.4-100-300-W1-0 can be mounted at altitudes up to 1000 meters.
Q: What level of protection does the TDM 1.4-100-300-W1-0 offer according to its IP rating?
A: It carries an IP10 protection rating, providing limited protection against solid foreign objects.
