TDM 1.3-100-300-W1-000/S105 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911250788
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
48 Seconds
The Bosch Rexroth Indramat TDM 1.3-100-300-W1-000/S105 is part of the TDM Servo Drive Modules series and has a continuous power rating of 30 kW with a continuous current of 65 Amps. This module provides a protection rating of IP10, weighs 10.5 kilograms, and features both external +15V and -15V capacities of 15 mA each. It also requires a minimum cooling clearance of 80 millimeters and has a power loss of 400 Watts.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

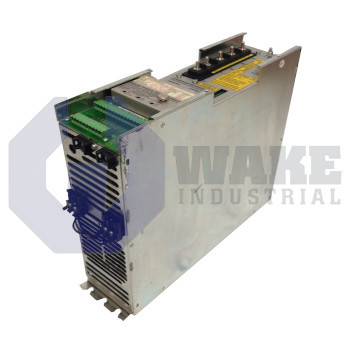

The TDM 1.3-100-300-W1-000/S105 is a servo drive module manufactured by Bosch Rexroth Indramat for the TDM Servo Drive Modules series. Installed in a multi-axis cabinet, the unit translates DC-bus energy into phase-controlled armature power so that Indramat motors can track precise torque or speed commands in automated presses, pick-and-place stations, and conveying systems. It also delivers regulated ±15 V auxiliary rails for resolver or encoder electronics, allowing the rack to consolidate sensing and power functions on a single card set. Because the module is intended for shared cabinet systems, it fits applications where several coordinated axes operate from a common supply and control platform.
Under continuous duty, the drive can deliver 65 A of motor current, supporting mechanical outputs up to 30 kW without derating. Internal losses are limited to 400 W, a figure that sets cabinet heat loading and airflow requirements. The housing carries a protection rating of IP 10, giving basic finger protection while relying on the enclosure for further guarding. With a mass of 10.5 kg, the module imposes moderate static load on DIN rails or slide-in guides. Insulation Category C spacing is used across the power sections, and the external ±15 V source can supply 15 mA on each rail, while the internal signal paths draw 140 mA at +15 V and 60 mA at −15 V. The surrounding cabinet must provide the primary barrier against incidental contact. Power terminals accept M6 lugs tightened to 5 Nm.
An ASQ relay contact rated at 24 V, 1 A routes fault status to the machine interlock chain, and a lockout input that sinks 20 mA DC at 24 V disables gate drive while using only 0.5 W of control power. Cooling airflow must pass through a clearance of 80 mm above the heat sink, and the M5 signal earth stud is secured at 3 Nm. The lockout circuit gives the controller a low-power way to inhibit output during faults or machine stops. The clearance and grounding requirements support stable installation in a ventilated drive cabinet.
Frequently Asked Questions about TDM 1.3-100-300-W1-000/S105:
Q: What is the continuous current capacity of the TDM 1.3-100-300-W1-000/S105 servo drive?
A: The TDM 1.3-100-300-W1-000/S105 drive provides a continuous current output of 65 A for connected loads.
Q: What is the continuous power rating of the TDM 1.3-100-300-W1-000/S105 servo drive?
A: This drive delivers continuous power up to 30 kW during standard operation.
Q: What is the Asq contact rating for the TDM 1.3-100-300-W1-000/S105?
A: The TDM 1.3-100-300-W1-000/S105 offers an Asq contact rating of 24 V at 1 A.
Q: How much minimum cooling clearance is required for this drive?
A: The recommended minimum clearance for cooling is 80 mm to ensure proper thermal management.
Q: What is the protection rating of the TDM 1.3-100-300-W1-000/S105 servo drive?
A: This servo drive has a protection rating of IP 10 for basic protection against solid objects.
