TDM 1.3-030-300-W1-000/S105 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911250786
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
37 Seconds

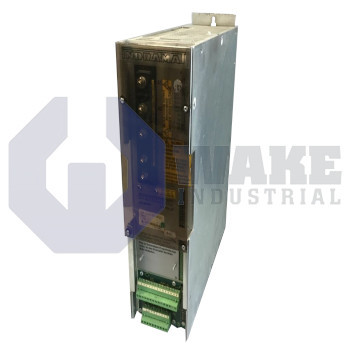

The Bosch Rexroth Indramat TDM 1.3-030-300-W1-000/S105 is part of the TDM Servo Drive Modules series and has a DC bus input of 300 VDC. Its dimensions are 390 mm in height, 105 mm in width, and 355 mm in depth. The module supports a maximum wire size of 1.5 mm² and features 15-pole signal inputs.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The TDM 1.3-030-300-W1-000/S105 drive module is produced by Bosch Rexroth Indramat within the TDM Servo Drive Modules series. Designed for industrial automation lines, the unit functions as a servo amplifier that converts energy from the common DC bus into phase-controlled output for synchronous and asynchronous motors. It is intended for modular rack installations where multiple axes share a common platform. This arrangement supports a consistent control layout across machines that require coordinated motion.
On the power side, the module ties into a DC intermediate circuit rated at 300 VDC, supplying the energy reservoir for its output stages. A built-in Asq relay provides signal routing and can handle loads up to 24 V, 1 A, so status contacts can be connected directly to a PLC or another control circuit. Command and diagnostic lines enter through a connector with 15 poles, which keeps low-level control wiring separate from the power section and helps reduce interference. To prevent unintentional starts, the electronics enable only when a gate that draws at least 20 mA DC and dissipates 0.5 W is satisfied. Values below either limit keep the drive in lockout, so the axis remains disabled until the external interlock circuit is complete.
The aluminum housing stands 390 mm high, spans 105 mm across the rack rail, and extends 355 mm deep, so adjacent modules can be stacked without exceeding standard enclosure depths. A mounting height of 373 mm aligns the heat-sink fins with forced-air channels in typical 19-inch frames, which supports predictable airflow across the rack. Field wiring lands on spring terminals that accept conductors up to 1.5 mm², allowing secure termination without excessive cable bulk. The compact form also leaves room for neighboring modules, bus components, and cable routing inside standard enclosures.
Frequently Asked Questions about TDM 1.3-030-300-W1-000/S105:
Q: What is the required DC bus input voltage for the TDM 1.3-030-300-W1-000/S105 module?
A: The TDM 1.3-030-300-W1-000/S105 servo drive module operates with a DC bus input voltage of 300 VDC.
Q: What is the maximum wire size that can be used with the TDM 1.3-030-300-W1-000/S105?
A: The maximum supported wire size for connections on this module is 1.5 mm².
Q: How many signal input poles does the TDM 1.3-030-300-W1-000/S105 have?
A: This module accommodates 15-pole signal inputs for control and communication.
Q: What is the starting lockout current for the TDM 1.3-030-300-W1-000/S105?
A: The starting lockout current is rated at 20 mA DC on this drive module.
Q: What is the ASQ contact load rating for the TDM 1.3-030-300-W1-000/S105 servo drive?
A: The ASQ contact load specification for this servo drive is 24 V, 1 A.
