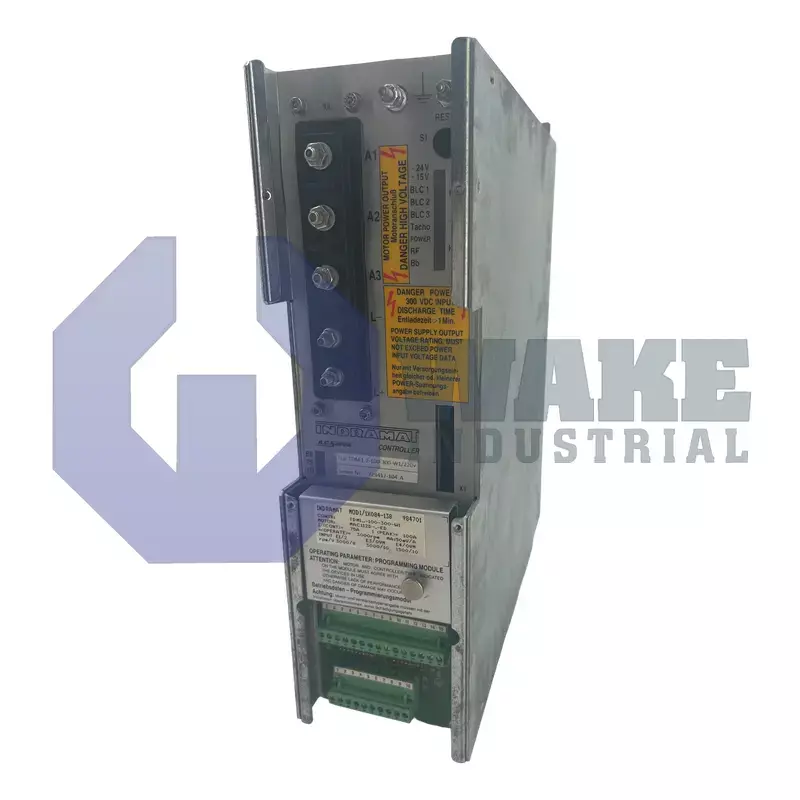

TDM 1.2-100-300-W1-220 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911219101
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
16 Seconds
The Bosch Rexroth Indramat TDM 1.2-100-300-W1-220 is part of the TDM Servo Drive Modules series and weighs 10.5 kg. This module delivers a continuous power of 30 kW, supports a peak current of 100 A, and uses forced ventilation cooling. It features a link circuit voltage of DC 300 V and has an IP10 protection rating.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The TDM 1.2-100-300-W1-220 is a servo drive module produced by Bosch Rexroth Indramat for the TDM Servo Drive Modules series. It operates on a common DC bus and regulates armature current for matched MAC servomotors used in automated tooling, printing, and assembly lines. In industrial automation cells, the module serves as the closed-loop power stage that converts motion commands from a CNC or PLC into controlled motor torque and responsive axis movement. Because it works as the current-regulating section of the axis, the drive supports smooth response during speed changes and positioning tasks.
During operation, the drive can furnish a continuous armature current of 65 A and momentary surges up to 100 A, which helps it support rapid acceleration and changing load demand. That current is supplied from a link circuit maintained at DC 300 V. Under rated conditions, the module delivers up to 30 kW of electrical power while dissipating 400 W as heat. Heat is removed by an integral blower, and the specified cooling method is forced ventilation. The blower consumes 30 VA and is protected by an internal 0.315 A/250 E fuse. Insulation category C and protection type IP 10 suit enclosed cabinet mounting where only basic contact protection is provided.
The analog command interface uses a scaling factor of 0.050 V/A, so monitor readings track motor current in a simple and direct way. For smaller axes, the current setpoint can be reduced to a minimum of 15 A to help limit motor heating during adjustment and low-load operation. The control electronics use the ±15 V auxiliary rails, drawing 60 mA from the -15 V side and 140 mA from the +15 V side. This arrangement separates low-level control power from the higher-energy motor circuit inside the cabinet. The axial-flow fan is powered by AC 220 V. With an installation weight of 10.5 kg, the module can be mounted on standard 24-inch cabinet rails without extra support hardware.
Frequently Asked Questions about TDM 1.2-100-300-W1-220:
Q: What is the continuous current rating of the TDM 1.2-100-300-W1-220 servo drive?
A: The TDM 1.2-100-300-W1-220 provides a continuous current rating of 65 A for reliable drive operation.
Q: What is the link circuit voltage specification of the TDM 1.2-100-300-W1-220?
A: This model operates with a link circuit voltage of DC 300 V, supporting efficient power delivery in servo applications.
Q: How is the TDM 1.2-100-300-W1-220 servo drive cooled?
A: The cooling for the TDM 1.2-100-300-W1-220 is handled by forced ventilation and uses an integrated fan.
Q: What is the peak current capacity of the TDM 1.2-100-300-W1-220?
A: The peak current capability of this drive is 100 A, accommodating short-term high demand.
Q: How much continuous power can the TDM 1.2-100-300-W1-220 deliver?
A: This model provides 30 kW of continuous power output for demanding machine control applications.
