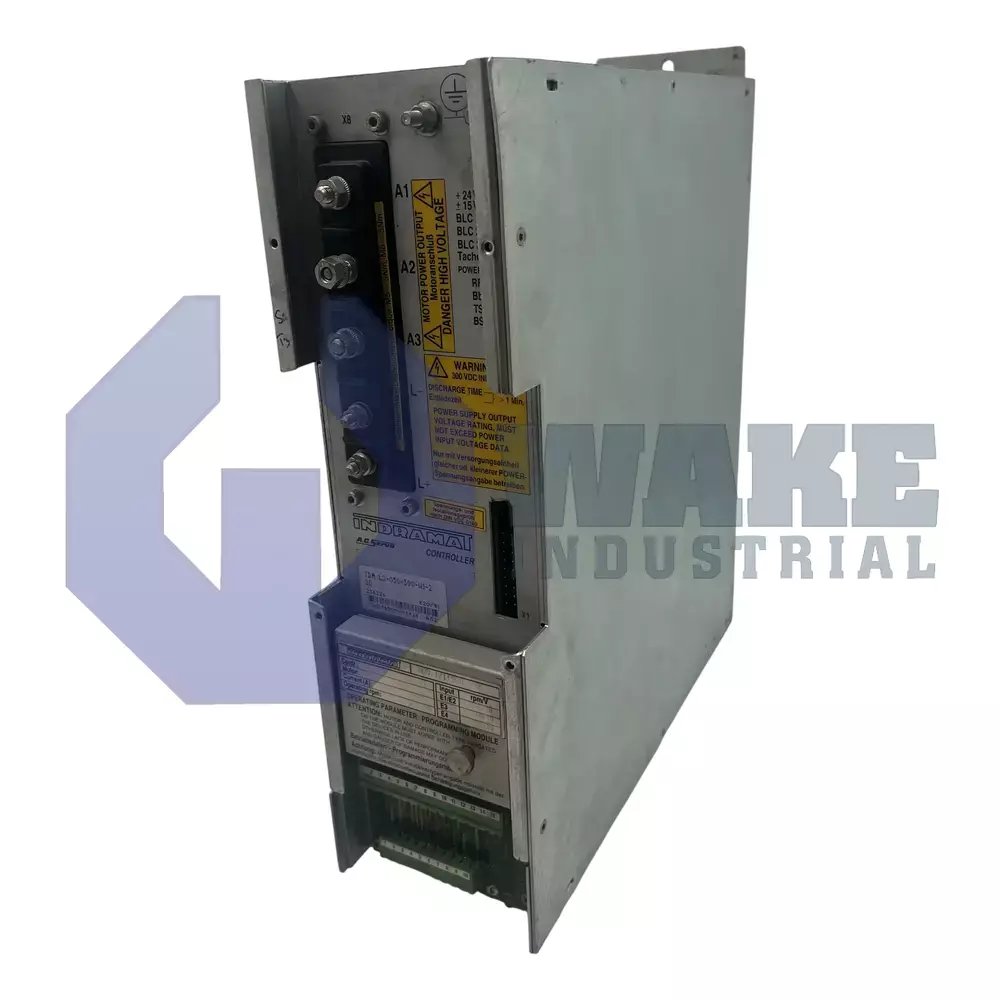

TDM 1.2-050-300-W1-220 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911219717
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
41 Seconds
The Bosch Rexroth Indramat TDM 1.2-050-300-W1-220 is part of the TDM Servo Drive Modules series. This module has a continuous power rating of 15 kW, a continuous current of 45 Amps, and a peak current of 50 Amps. It weighs 10 kilograms and operates with a link circuit voltage of 300 VDC.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat manufactures the TDM 1.2-050-300-W1-220 as part of its TDM Servo Drive Modules series. This drive converts rectified DC into three-phase output for Indramat servo motors, allowing velocity, torque, and position loops to be closed by the higher-level controller. It is intended for cabinet installation within automated machine tools, packaging lines, and material handling axes where modular drive sections simplify maintenance and reduce downtime.
The power stage delivers a continuous phase current of 45 A, corresponding to a mechanical shaft output of 15 kW when matched with the recommended motors. For transient load steps, it can supply 50 A of peak current, giving additional acceleration torque before thermal limits are reached. Energy is taken from a shared bus at 300 VDC link-circuit voltage; under nominal loading, the module dissipates 250 W as heat, which is removed by an internal fan rated at 30 VA and operated from the 220 VAC auxiliary supply. That fan is protected by a 0.315 A/250 E miniature fuse mounted on the drive motherboard. Control electronics draw 140 mA from the internal +15 V rail, 60 mA from the −15 V rail, and can source 15 mA of external +15 V for encoder or sensor interfaces.
The housing carries insulation category C and a IP10 open-frame protection rating, so installation must occur inside a grounded control enclosure. At only 10 kg, the module can be mounted on standard DIN rails or backplanes. Thermal design allows continuous duty up to 55 °C ambient without derating when the cabinet airflow is unobstructed, and the integrated fan maintains component temperature margins. Reliable commutation is specified for sites situated at elevations up to 1000 m above sea level, beyond which additional cooling measures are recommended to offset reduced air density.
Frequently Asked Questions about TDM 1.2-050-300-W1-220:
Q: What is the continuous current capability of the TDM 1.2-050-300-W1-220 servo drive?
A: This drive can deliver a continuous current of 45 A under standard operating conditions.
Q: What is the peak current supported by the TDM 1.2-050-300-W1-220?
A: The peak current for this model is 50 A, which can be utilized during brief load demands.
Q: What is the continuous power output of the TDM 1.2-050-300-W1-220 drive?
A: This drive features a continuous power output of 15 kW, suitable for demanding applications.
Q: What is the maximum ambient operating temperature for the TDM 1.2-050-300-W1-220?
A: It is designed to be operated up to a maximum ambient temperature of 55 °C.
Q: What are the fan power and voltage requirements for the TDM 1.2-050-300-W1-220?
A: The fan of this drive operates at a voltage of 220 VAC and requires 30 VA of power.
