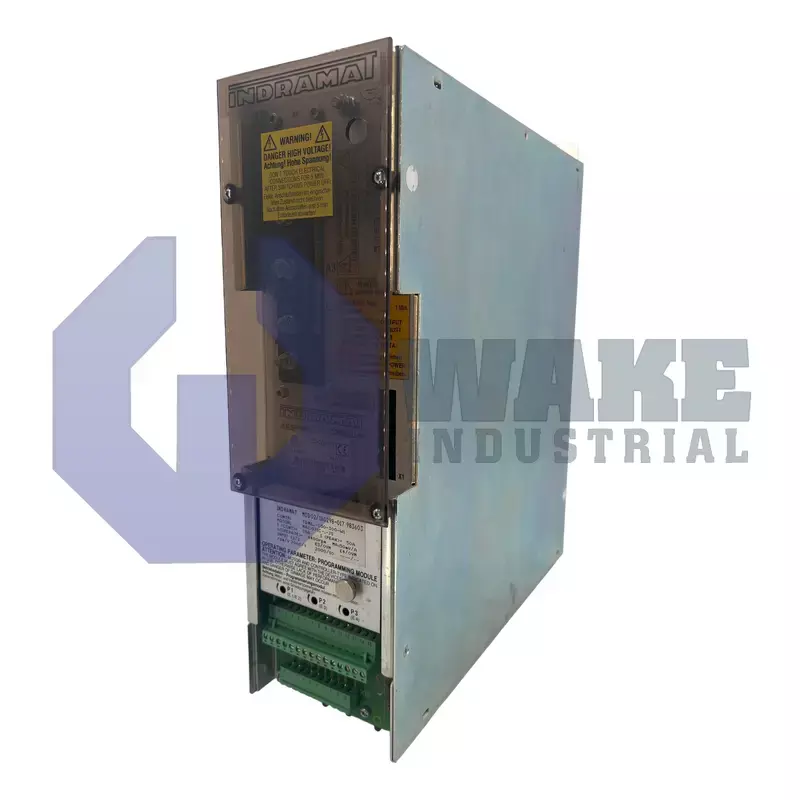

TDM 1.2-050-300-W1-000
MPN: R911236233
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships Today
TDM 1.2-050-300-W1-000 is a servo drive. It is designed for MAC motor control. Rated output of the unit is 50 Amps.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
TDM 1.2-050-300-W1-000 is a TDM series servo drive. It is designed and produced by Bosch Rexroth. The drive is compatible with MAC motors from Bosch, specifically from the MAC71 to MAC160 series. Applications include metal machining and wood working, transfer lines, automation systems, as well as in production machines in the automotive industry. The drive unit is designed for forced convection cooling. It comes with a cooling fan that requires 115/230 Volts AC input and consumers 30 VA. The supply for the fan can be generated within the unit. The drive unit has a rated current output of 50 Amps. The peak current output is 50 Amps and the continuous current output is 45 Amps. Voltage on the DC link circuit is 300 Volts DC. Rated output power of the TDM 1.2-050-300-W1-000 drive is 15 kilowatts.
Signal processing circuits on the unit requires 24 Volts / 15 Volts DC external supply. At 24 Volts DC, these circuits draw 950 milliamps. At 15 Volts DC, these circuits draw 140 milliamps. At -15 Volts DC, these circuits draw 60 milliamps. Weight of the TDM 1.2-050-300-W1-000 drive is 10 kilograms. It comes in an IP10 rated housing that must be installed inside a suitable cabinet. The ambient temperature range for rated output is 5 to 45 degrees Celsius. For storage of unused TDM units, the recommended temperature is -30 to 85 degrees Celsius. The mounting altitude without reduction in rated data is 0 to 1000 meters. Humidity classification of the drive is F according to DIN 40 040. The insulation category of the drive unit is C as per DIN VDE 010. Only trained personnel should work on the drive unit.
Frequently Asked Questions about TDM 1.2-050-300-W1-000:
Q: Can the servo drive be used outdoors?
A: With an IP10 rated housing, the drive must be installed insdie a cabinet
Q: What is the operating temperature for rated output?
A: The operating temperature for rated output is 5 to 45 degrees Celsius.
Q: Which motors are compatible with the drive?
A: MAC71 to MAC160 series motors can be used with the drive.
Q: What is the mounting orientation?
A: Mounting orientation of the unit is vertical.
Q: What is the recommended setup height?
A: The recommended setup height is between 0 and 1000 meters.
