The Bosch Rexroth Indramat TDM 1.2-030-300-W1-000/S107 is part of the TDM Servo Drive Modules series. This module delivers a continuous power of 9 kW, a continuous and peak current rating of 30 Amps, and uses a built-in fan for cooling. It operates with a DC link voltage of 300 VDC, has a protection rating of IP10, and weighs 10 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

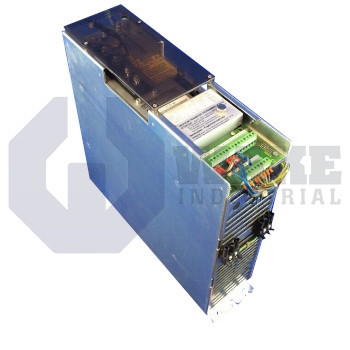

The TDM 1.2-030-300-W1-000/S107 is a servo drive module developed by Bosch Rexroth Indramat for the TDM Servo Drive Modules series. As a drive controller, it supplies regulated DC link power and controlled motor current to synchronous or induction servomotors in automated production lines, machining centers, and material-handling equipment. The unit converts three-phase mains power into a stabilized internal bus and executes current loops that translate control commands into precise rotor torque. It is suited to closed-loop axes where stable torque response and repeatable motor behavior are required throughout production cycles.
During steady operation, the drive can deliver a continuous phase current of 30 A, which corresponds to a rated output of 9 kW at the specified load conditions. Its DC link is maintained at 300 VDC, providing a fixed voltage reference for the connected inverter stages. The fixed bus voltage helps the power stage maintain predictable switching behavior during normal servo operation. Thermal energy created by switching losses is removed by a built-in fan; the fan receives its supply directly from power generated within the unit, so no external blower wiring is required. At rated load, the internal losses amount to 190 W, which should be considered when planning cabinet ventilation. The ±15 V signal rails can supply momentary currents of 60 mA and 140 mA to support encoder feedback and control electronics.
The drive tolerates ambient temperatures up to 55 °C without derating and may be mounted at elevations not exceeding 1000 m above sea level. Operation above that altitude can reduce air density and lower cooling effectiveness. An enclosure classification of IP10 indicates protection against accidental finger contact while leaving the module open for cabinet airflow. The open housing style is intended for installation inside an electrical enclosure rather than on an exposed machine surface. With a transport mass of 10 kg, the module remains suitable for standard cabinet installation, and the peak motor acceleration current matches the continuous current rating.
Frequently Asked Questions about TDM 1.2-030-300-W1-000/S107:
Q: What is the continuous current rating of the TDM 1.2-030-300-W1-000/S107 servo drive module?
A: This drive module can deliver a continuous current of 30 A during operation.
Q: What is the DC link voltage for the TDM 1.2-030-300-W1-000/S107?
A: The TDM 1.2-030-300-W1-000/S107 operates with a DC link voltage of 300 VDC.
Q: How is the TDM 1.2-030-300-W1-000/S107 cooled?
A: A built-in fan is used for cooling, with the fan supply generated within the unit.
Q: What is the continuous power rating of the TDM 1.2-030-300-W1-000/S107?
A: This drive module sustains up to 9 kW of continuous power output.
Q: What is the maximum ambient temperature supported by the TDM 1.2-030-300-W1-000/S107?
A: The maximum allowed ambient temperature for this model is 55 °C.
