SF-A2.0041.030-10.050
- MPN: 1070076509
- Stock: Call for Quote
COVID-19 Update: Wake Industrial is open and available to support your automation needs.
This company was fantastic to work with! Very patient with us to make sure we ...
~ Carla Morgan Excellent Kentucky, USANext day air shipping and we are up and running!! Thanks so much!
~ Jeanne Wolter Excellent Colorado, USAWe asked for a fast turn around and Wake was up to the task!
~ Darrell Chapman Excellent Indiana, USAI contacted Gregg one morning in desperate need of two servos to get our Filler ...
~ Paul Kovacs Excellent California, USAThe service that I received was outstanding!
~ Gary Douglas Excellent Ontario, CanadaUnderstood our situation, and worked to help us get it solved. Very responsive, and stepped ...

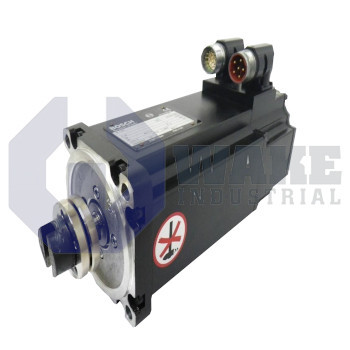

~ Brian Tomlin Excellent Arizona, USAThe SF-A2.0041.030-10.050 is a synchronous servomotor from Bosch Rexroth. The motor features a compact modular design. It uses a single-turn absolute value encoder for controlling position and speed. The unit incorporates a SERCOS interface. The motor comes without forced air cooling and gets cooled through natural convection. The motor can be braked using a plug braking option when there is a control or operating voltage failure. The holding brake is free from backlash and is equipped with permanent magnets. The synchronous unit comes with a one-year warranty period.
The motor has a 1-Ohm resistance and 785 Watts maximum energy in short-time operation. The permanently excited unit features electronic commutation and operates using a sinusoidal EMF. It features an IP67 protection rating according to EN 60 445 and DIN 40050/40053 specifications, except for the outside. The unit has ‘A’ design suffix and a 2 frame size. The device has a basic smooth shaft with a diameter of 14mm at the shaft end on the output side. The shaft does not encompass a mating connector. The ball bearings are located on the output or flange side. The encoder has a precision of +/-20 angular seconds and a resolution of 8 million increments per revolution.
The synchronous servomotor operates at a temperature range of 0°C and +40°C. The cylindrical shaft end is designed in accordance with DIN 748 specifications. The motor has a rated speed of 3,000min-1 and 2.8A locked-rotor current. It encompasses 1 connector size and 4 x 1.5mm2 cable cross-section. The device is CE Certified. The unit is enclosed in a low-contamination and smooth aluminum frame. The motor has a maximum length of 233mm without the holding brake. The servomotor can be shipped to any address worldwide through our reliable delivery network.
Encoder: | STG/MTG |
Locked Rotor Current: | 2.8 |
Rated Speed : | 3000 |
Shaft Option: | Basic Version, no mating connector |
