RZR01.2-RD52-0880-P-R-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911203096
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

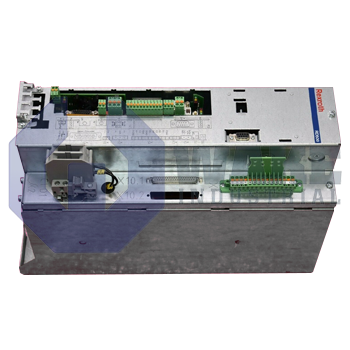

The Bosch Rexroth Indramat RZR01.2-RD52-0880-P-R-FW is a frequency converter controller in the RZR Frequency Converters series. It uses field-oriented vector control and features parallel circuitry. The unit has a protection class of IP20, supports a maximum current of 880 Amps, and weighs 6.5 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The RZR01.2-RD52-0880-P-R-FW is a frequency converter controller produced by Bosch Rexroth Indramat within the RZR Frequency Converters series. It serves as a regenerative mains inverter, returning excess energy from drive systems back to the supply bus instead of dissipating it as heat. In braking or overhauling applications, this reduces the thermal burden on resistor-based dissipation systems and keeps less waste heat inside the cabinet. By integrating with multi-axis automation assemblies, the unit conditions DC-link power and coordinates braking events across connected converter sections. Because recovered energy is fed back to the upstream supply, the controller is suited to systems with frequent deceleration cycles and shared DC-bus operation.
Its control electronics are supplied from 24 V +/- 5% auxiliary power, isolating logic circuits from the mains path. The power stage can deliver up to 880 A when the converter modules are wired in parallel, an arrangement used for high-current common DC grids. Speed and torque regulation are handled by field-oriented vector control, allowing dynamic current reversal during regenerative cycles and stable response during changing load conditions. With a housing rated IP20, the device must be installed in a closed electrical cabinet. Design 2 and Line 01 indicate the layout and connector arrangement used for this controller.
The controller supports continuous operation between 0 - 40 °C, which suits indoor industrial spaces with controlled ambient conditions. It fits the 3K3 (DIN IEC 721-3-3) environmental class, indicating tolerance for moderate dust and the absence of corrosive vapors. During normal service, the control section draws 12 A from the auxiliary source, so the support supply can be sized for steady control demand rather than motor power delivery. A transport mass of 6.5 kg supports panel mounting and reduces mechanical load on cabinet structures during installation. The controller is intended for cabinet integration under these operating conditions.
Frequently Asked Questions about RZR01.2-RD52-0880-P-R-FW:
Q: What control type does the RZR01.2-RD52-0880-P-R-FW frequency converter use?
A: The RZR01.2-RD52-0880-P-R-FW frequency converter is designed with field-oriented vector control for precise operation.
Q: What is the maximum current capability of the RZR01.2-RD52-0880-P-R-FW frequency converter?
A: This frequency converter operates with a maximum current rating of 880 A, supporting high power applications.
Q: What protection class does the RZR01.2-RD52-0880-P-R-FW frequency converter provide?
A: The protection class of this converter is IP20, which protects against solid objects greater than 12 mm but offers no water protection.
Q: What type of circuitry does the RZR01.2-RD52-0880-P-R-FW frequency converter utilize?
A: The RZR01.2-RD52-0880-P-R-FW features parallel circuitry for improved power handling and redundancy.
Q: What is the required input voltage for the RZR01.2-RD52-0880-P-R-FW frequency converter?
A: The input voltage requirement is 24 V with a tolerance of plus or minus 5%.
