RKG5021 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN:
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat RKG5021 is part of the RKG Encoder Cables series and features a 12-pin circular encoder-side connector with SSI interface type. This cable includes internal screen shielding, a 0.34 mm² power conductor size, and provides 5 V encoder supply at pin 12.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

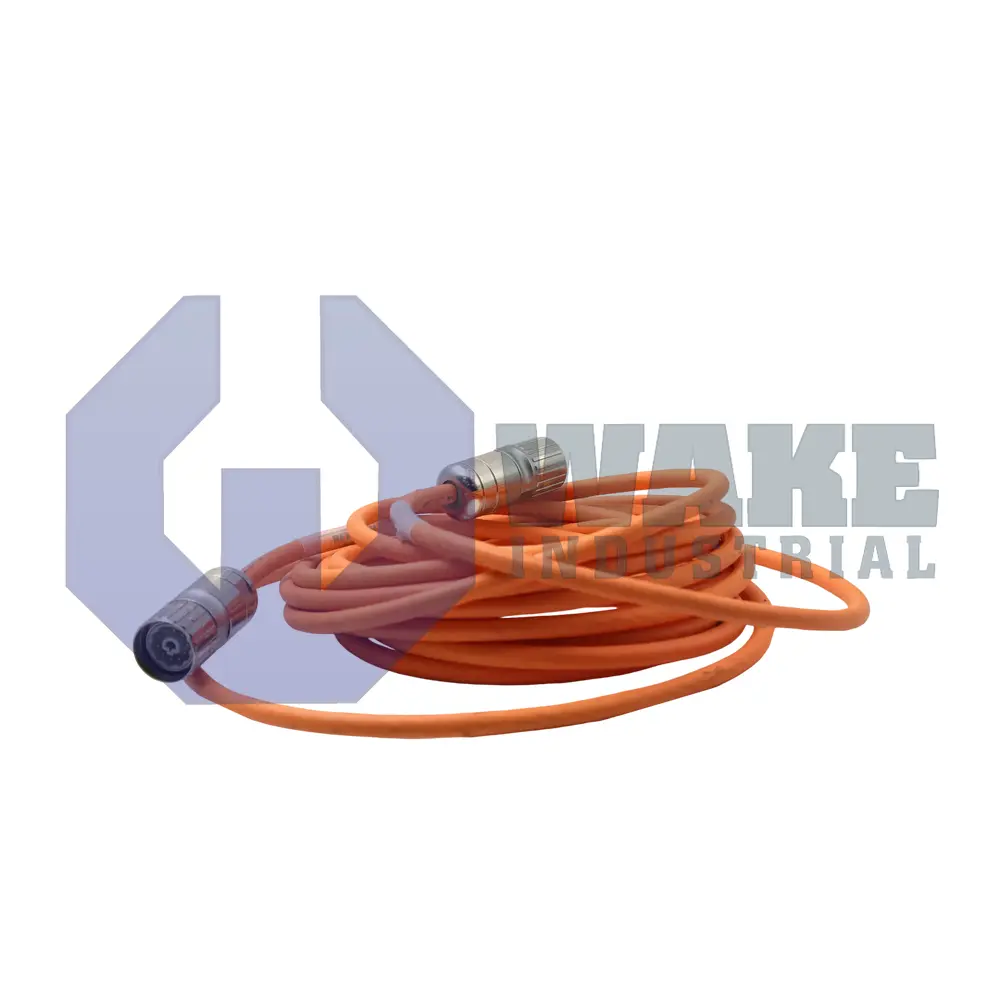

The RKG5021 is an encoder feedback cable produced by Bosch Rexroth Indramat as a member of the RKG Encoder Cables series. It is supplied as a pre-terminated assembly that links serial synchronous interface encoders to Indramat drive controllers, creating the data path for real-time position transmission with minimal latency. By carrying both power and differential clock lines in a single jacket, the cable simplifies routing through drag chains and rotary axes, and it supports deterministic closed-loop motion in CNC machining centers, packaging equipment, and material-handling gantries.
It implements the serial synchronous interface, or SSI, so that each encoder can be clocked deterministically while returning position bits in a balanced pair that resists common-mode noise. Conductor identification is simplified: the negative clock lead is insulated in Yellow/Black, and the positive clock lead appears in Green/Black. A dedicated reference node of 0 V (Pin 10) is routed beside the signal pair to help prevent ground offsets that could corrupt timing. The assembly also feeds the encoder electronics with a stabilized 5 V (Pin 12) supply drawn from the drive controller, eliminating the need for local regulators and keeping wiring counts low.
At the sensor end, a keyed 12-Pin Circular connector mates directly with Rexroth encoders, ensuring correct pin alignment during installation. The two conductors that carry supply and ground are sized at 0.34 mm², providing adequate cross-section for current while maintaining flexibility. Differential data and clock pairs use a slimmer 0.14 mm² gauge so the overall cable diameter stays compact. An Internal Screen surrounds all pairs and drains interference to cabinet earth, allowing the RKG5021 to preserve bit integrity alongside high-current motor leads in tight cable trays.
Frequently Asked Questions about RKG5021:
Q: What type of connector is used on the encoder side of the RKG5021 cable?
A: The RKG5021 is equipped with a 12-pin circular connector on the encoder side.
Q: What interface type is supported by the RKG5021 encoder cable?
A: This cable supports the SSI interface, ensuring compatibility with SSI-compatible encoders.
Q: What is the power conductor size in the RKG5021 cable?
A: The power conductor in the RKG5021 has a size of 0.34 mm² for reliable power delivery.
Q: What kind of shielding is included in the RKG5021 encoder cable?
A: The RKG5021 encoder cable features internal screening for signal shielding.
Q: What voltage does the RKG5021 cable supply to the encoder?
A: The encoder supply is provided at 5 V via pin 12 on this cable.
