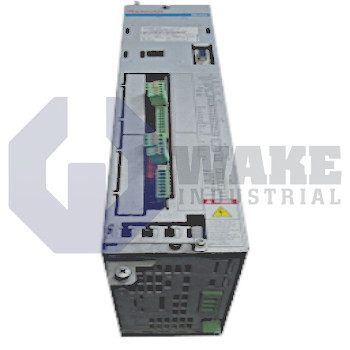

RD52.2-4B-003-L-A1-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911201021
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat RD52.2-4B-003-L-A1-FW is a drive controller from the RD 500 Drive Controllers series. It features field oriented vector control, a rated power of 3.0 kW, and forced air cooling. This controller has a built-in brake chopper, integrated mains filter, and operates with a voltage range of 380 to 480 V.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The RD52.2-4B-003-L-A1-FW is a drive controller produced by Bosch Rexroth Indramat and belongs to the RD 500 Drive Controllers series. Designed for industrial automation, the unit interfaces with induction or synchronous AC motors and regulates torque, speed, and direction in multi-axis machinery. By processing real-time feedback and modulating motor output, the controller serves as the central power stage between the plant mains and the motion hardware. This arrangement supports coordinated operation in conveyors, tooling heads, process pumps, and similar equipment where stable motor response is required during changing load conditions.
Internally, the controller uses field-oriented vector control, so current components are resolved into flux-producing and torque-producing vectors for precise dynamic response during acceleration and speed changes. It is supplied through a three-phase AC converter front end that accepts line voltages from 380–480 V and remains functional within a ±10 % tolerance window, which helps it operate reliably where incoming utility levels vary. The power section is rated at 3.0 kW, making it suitable for medium-frame motor duties. External standby power can be used, and a starting lockout circuit helps prevent unintended energization when the system is not meant to run.
Thermal management relies on forced air cooling, so cabinet airflow must be maintained to keep semiconductor temperatures within normal operating limits during continuous use. The built-in brake chopper reduces the need for separate braking hardware and simplifies resistor connection where decelerating loads return energy to the drive. As a generation 2 design, the controller keeps platform continuity while using faster internal processing to support control response and stable regulation. The integrated mains filter helps reduce conducted interference on the supply side and limits the spread of switching noise to upstream equipment.
Frequently Asked Questions about RD52.2-4B-003-L-A1-FW:
Q: Does the RD52.2-4B-003-L-A1-FW drive controller have a built-in brake chopper?
A: The Bosch Rexroth RD52.2-4B-003-L-A1-FW features a built-in brake chopper for enhanced braking performance.
Q: What control type is utilized by the RD52.2-4B-003-L-A1-FW drive controller?
A: This model uses field oriented vector control for precise motor management.
Q: What cooling type does the RD52.2-4B-003-L-A1-FW support?
A: Forced air cooling is used for thermal management in this drive controller.
Q: What is the rated power of the RD52.2-4B-003-L-A1-FW drive controller?
A: The rated power output for this model is 3.0 kW.
Q: What voltage range and tolerance does the RD52.2-4B-003-L-A1-FW support?
A: This controller is designed for a 380 to 480 V supply and operates with a tolerance of ±10%.
