Product Description:

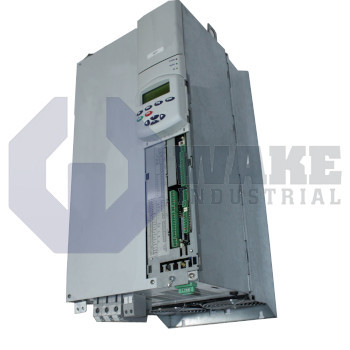

The RD51.1-4B-030-L-NN-P1-T1-FW is a drive controller produced by Bosch Rexroth Indramat as part of the RD 500 Drive Controllers series. As a drive-side component, it interfaces with induction motors to adjust speed and torque in automated machinery and conveyor installations. By modulating output frequency and voltage according to load demand, the unit delivers stable motion control while helping protect connected equipment from line disturbances and transient events common in industrial environments. This operating method suits applications that need reliable speed control under changing process loads.

This controller is rated for 30 kW of continuous motor power and accepts line supplies in the 380 to 480 V range. A tolerance of ±10 % allows operation on feeders with moderate voltage variation, which helps reduce nuisance trips in plants with fluctuating supply conditions. The supply connection uses a three-phase AC converter input, so the unit operates from a three-phase AC source before rectifying the incoming power. Speed regulation uses U/f curve control, which maintains a constant volts-per-hertz ratio across the operating range and suits general-purpose induction motor applications. The controller is in Generation 1. It is supplied without optional expansion cards, so the base configuration remains focused on standard drive functions and cabinet integration.

A built-in brake chopper directs regenerative energy to an external resistor, preventing DC-bus overvoltage during rapid deceleration or high-inertia stopping events. Thermal loads are managed by forced air cooling, which draws cabinet air through the heat sink to keep semiconductor temperatures below their rated limits during continuous operation. Input-side interference is reduced by an integrated line filter, helping the installation meet typical EMC guidelines without extra components. The cooling path depends on cabinet airflow, so unobstructed vent space around the heat sink remains important during installation.
