Product Description:

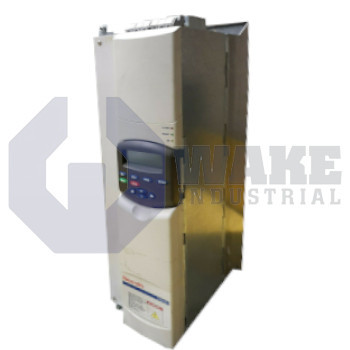

The RD51.1-4B-022-L-DF-FW drive controller is produced by Bosch Rexroth Indramat as part of the RD 500 Drive Controllers series. In automated production lines, it provides variable-speed power conversion for three-phase motors and acts as the interface between facility mains and motion axes that require reliable torque regulation. That operating role lets connected motors match process demand more closely than fixed-speed operation, which helps where load and throughput change during a machine cycle.

The unit accepts a three-phase supply rated as Converter 3 x AC within a line window of 380 to 480 V, and a tolerance of ±10 % lets it ride through moderate mains sag or swell without tripping. At the inverter output, the power stage can deliver up to 22 kW to the motor, which sets the available drive power for the connected load. Speed and torque are regulated through U/f curve control, a method that maintains the ratio of stator voltage to frequency for stable flux when encoder feedback is not available. This Generation 1 design also includes a DC-link path for dynamic braking energy that works with the internal chopper device during deceleration.

Thermal management relies on forced-air cooling; fans move air across the heat sink to keep semiconductor junctions within limits during full-load cycles. Dynamic stops are handled by the built-in brake chopper, which directs excess DC-bus energy to an external resistor instead of returning it to the grid. Input harmonics are reduced by an integrated mains filter, which helps limit conducted interference on plant power lines. Control wiring lands on a NAMUR terminal strip that also carries the 24 V standby supply so the logic remains active when main power is off. Additional diagnostics arrive via feedback of current filter phases U6, V6, and W6, helping the control section monitor internal operating conditions and detect abnormal behavior during operation or shutdown.
