RAC 2.3-250-460-D00-W1 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911271217
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

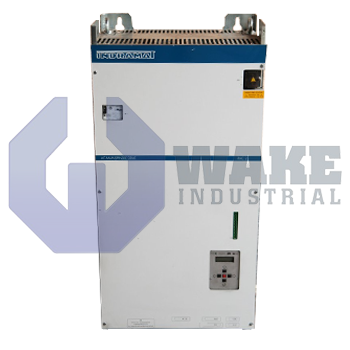

The Bosch Rexroth Indramat RAC 2.3-250-460-D00-W1 is an AC Main Spindle Drive Controller from the RAC Spindle Drive Controllers series. It supports a rated connection voltage of either 3 x AC 400 V at 50 Hz or 3 x AC 460 V and delivers a rated current of 250 Amps. This drive controller uses an internal blower for cooling and offers a digital 16-bit parallel speed command interface.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The RAC 2.3-250-460-D00-W1 is an AC main spindle drive controller manufactured by Bosch Rexroth Indramat within the RAC Spindle Drive Controllers series. Designed for high-power machine tool axes, the unit converts a facility three-phase supply into controlled amplitude and frequency for spindle motors. It occupies the main spindle channel in a multi-axis rack, enabling closed-loop control that keeps rotational speed stable during heavy cutting, tapping, or grinding operations in automated production lines. This operating role supports consistent spindle response when load conditions change during demanding machining cycles.
Its power stage delivers a continuous output of 250 A, supplying sufficient current to large spindle motors without external parallel drives. The input range of 3 x AC 400 V, 50 Hz, +/-15% or 3 x AC 460 V allows the same unit to run on European or North American plant voltages. A 16-bit parallel digital speed command bus connects directly to numerical controls so that command changes are transferred in a deterministic format. Parameter and diagnostic wiring is concentrated on the X4 25-pole terminal block, which keeps interface connections grouped at one location. Thermal management relies on a built-in fan that pulls air through the heat sink fins, allowing the controller to operate where external airflow is limited.
This hardware is supplied without an additional bleeder, so regenerated energy must be handled by the standard braking resistor or returned to the DC link. It is also provided without an additional encoder input, so velocity feedback enters through the primary spindle sensor channel only. The controller belongs to design level 2 and version 3. That arrangement suits installations that use the standard spindle interface without optional expansion hardware.
Frequently Asked Questions about RAC 2.3-250-460-D00-W1:
Q: What type of speed command input does the RAC 2.3-250-460-D00-W1 support?
A: The drive controller uses a digital 16-bit parallel interface for speed commands, allowing for precise control input.
Q: What is the rated connection voltage for the RAC 2.3-250-460-D00-W1 spindle drive controller?
A: This model operates at a rated connection voltage of either 3 x AC 400 V, 50 Hz, +/-15% or 3 x AC 460 V.
Q: How is the RAC 2.3-250-460-D00-W1 kept cool during operation?
A: The RAC 2.3-250-460-D00-W1 controller includes an internal blower with a built-in fan for cooling.
Q: What is the rated current capacity of the RAC 2.3-250-460-D00-W1?
A: The drive controller is rated for a current of 250 A.
Q: What type of interface terminal does the RAC 2.3-250-460-D00-W1 use?
A: The interface terminal provided is an X4 connector with 25 poles.
