PPC-R02.2N-N-N1-V2-NN-FW

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911290006
  • Stock: Call for Quote
The PPC-R02.2N-N-N1-V2-NN-FW is part of the PPC Controller Series manufactured by Rexroth Indramat Bosch. This PPC controller features a Rated Value of 24 VDC and a Permissible Range of 19.2 ... 30 VDC (ripple factor included). It also contains a Tolerance of -15% / +20% (according to EN61131-2 1994).

PPC-R02.2N-N-N1-V2-NN-FW

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911290006
  • Stock: Call for Quote
The PPC-R02.2N-N-N1-V2-NN-FW is part of the PPC Controller Series manufactured by Rexroth Indramat Bosch. This PPC controller features a Rated Value of 24 VDC and a Permissible Range of 19.2 ... 30 VDC (ripple factor included). It also contains a Tolerance of -15% / +20% (according to EN61131-2 1994).

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a PPC-R02.2N-N-N1-V2-NN-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

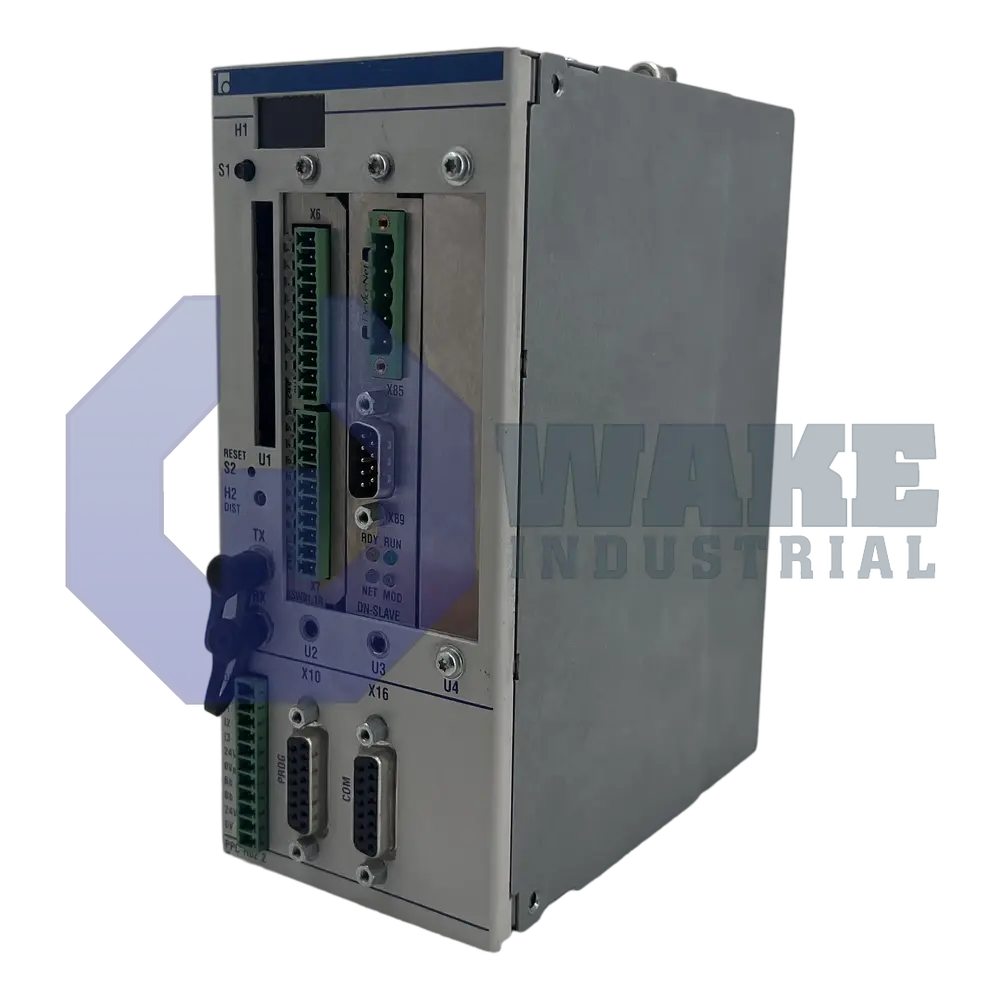

The PPC-R02.2N-N-N1-V2-NN-FW product is a CNC module that is manufactured by Bosch Rexroth. This module has a line code of 2. The S2 reset button in the center of the product helps to reset it to its original state. The device features a double-wide housing. It encompasses three optional sockets for fitting up to three processor modules. Each of these modules can support eight additional drives. Multiple units cannot be combined through a backplane. The device and the PLC control unit MTS-R01.2 together render a flexible, compact and powerful solution for a classic machine control unit.

The module carrier inside the switching cabinet should be placed vertically for this CNC module to be placed in the same orientation. The horizontal position is an invalid orientation for the product. The S1 display can be switched between a corresponding running text and a four-character text for each diagnosis message by pressing the S1 button. The buffered data of the SDRAM is used in tool data, zero offsets, machine data and more. The module has a protection rating of IP 20 according to EN 60529 specifications. It may experience high electric voltage if the connections are incorrect. The PPC-R02.2N-N-N1-V2-NN-FW CNC module can be safely dispatched to the address of your choice.

This product supports the use of a passive SCEB01_PC104 SERCOS interface axis processor module for expanding the control systems to four SERCOS rings optionally. This interface communicates with the drives using fiber optic technology. The boot loader/monitor component of the firmware is mandatory for hardware initialization and starting the procedure of the CNC module. The COM interface of this device helps in diagnosis if servicing is needed. The unit must not be used if the maximum temperature is very high. Tampering with the product or its inappropriate use can cause electric shock, bodily harm and/or material damage. The CNC module features a warranty for one year from Wake Industrial.

  • PPCR022NNN1V2NNFW
  • PPC R02 2N N N1 V2 NN FW
  • ppc-r02.2n-n-n1-v2-nn-fw

PPC-R02.2N-N-N1-V2-NN-FW Technical Specifications

Permissible Range: 19.2 ... 30 VDC (ripple factor included)
Rated Value: 24 VDC
Tolerance: -15% / +20% (according to EN61131-2 1994)
