NFD03.1-480-007 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911286917
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

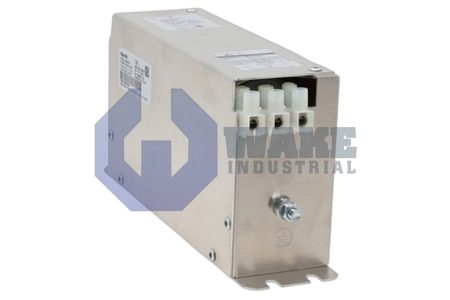

The Bosch Rexroth Indramat NFD03.1-480-007 is a mains filter in the NFD Mains Filters series, designed for 480 V AC nominal voltage and rated for 7 Amps of current. It features a 3-phase setup, has a power dissipation of 3.9 W, and measures 160 mm in height, 50 mm in width, and 90 mm in depth. This filter has a mass of 0.7 kg and supports a connection area of 6 mm² for ek and 4 mm² for rk.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The NFD03.1-480-007 mains filter is produced by Bosch Rexroth Indramat as part of the NFD Mains Filters series. Designed for installation at the power entry of servo drives and inverters, the unit attenuates conducted electromagnetic interference, improving compatibility between drive equipment and the plant supply network. By connecting in series with the three-phase supply, it blocks high-frequency noise and returns a cleaner waveform to the grid, which helps neighboring automation devices meet electromagnetic emission limits and maintain signal integrity on sensitive control lines.
The filter is intended for supplies up to 480 V AC, matching common plant distributions. It is configured for 3 phases, so all three line conductors pass through the internal inductors and capacitors before reaching the drive. Continuous load current capability is 7 A, allowing it to protect small and medium power converters without saturation. Terminals marked ek accept conductors up to 6 mm², while the rk side is limited to 4 mm²; this split capacity supports heavier incoming cables and lighter outbound wiring toward the drive cabinet. With these ratings, the filter can be placed close to the drive or in a centralized panel with minimal voltage drop.
The enclosure measures 50 mm in width, 160 mm in height, and 90 mm in depth, enabling dense mounting on DIN rail or back plate when multiple filters are required. During operation, the core and damping network convert switching noise into heat amounting to 3.9 W, so only modest ventilation is needed to keep the internal temperature stable. The mass of 0.7 kg allows single-person handling and permits installation on lightweight sheet-metal doors without reinforcement. Clearances around the case should follow local guidelines to maintain airflow and to ensure that adjacent components remain within their own temperature limits.
Frequently Asked Questions about NFD03.1-480-007:
Q: What is the nominal voltage supported by the NFD03.1-480-007 mains filter?
A: The NFD03.1-480-007 is rated for a nominal voltage of 480 V AC.
Q: What is the current rating of the NFD03.1-480-007?
A: This mains filter supports a maximum current of 7 A.
Q: How many phases does the NFD03.1-480-007 support?
A: A three-phase electrical system is required for this filter.
Q: What is the power dissipation of the NFD03.1-480-007 mains filter?
A: The NFD03.1-480-007 has a power dissipation value of 3.9 W.
Q: What are the connection area sizes for the NFD03.1-480-007 mains filter?
A: This model is designed with a connection area of 6 mm² for ek and 4 mm² for rk.
