NFD02.1-480-008 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911270157
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

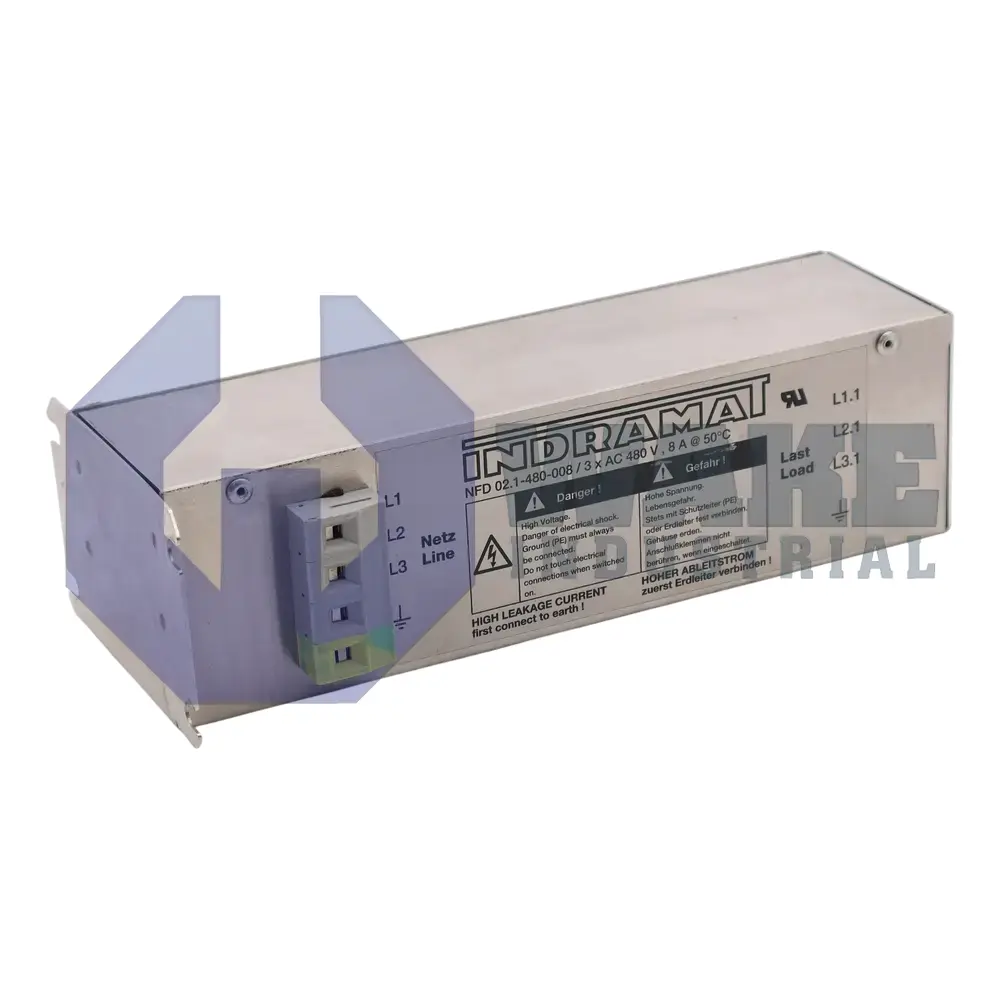

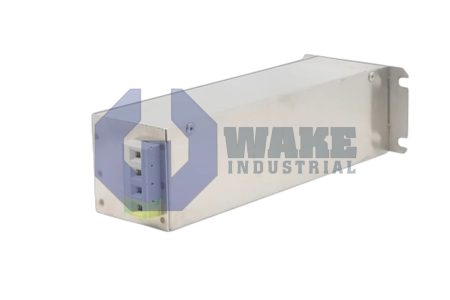

The Bosch Rexroth Indramat NFD02.1-480-008 belongs to the NFD Mains Filters series and has a rated line current of 7.5 Amps with a maximum connection voltage of AC 480 V plus 10 percent. This three-phase filter features a protection rating of IP10 and measures 210 mm in length, 40 mm in width, and 60 mm in height. It weighs 1.5 kilograms and has a power dissipation of 8.7 Watts.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The NFD02.1-480-008 mains filter is built by Bosch Rexroth Indramat and belongs to the NFD Mains Filters series. Installed ahead of three-phase drive controllers, it suppresses conducted interference on the supply lines so that downstream inverters run within electromagnetic compatibility limits. This reduces the amount of switching noise that can feed back into the plant power network. By moderating high-frequency noise, the filter supports stable operation of servo systems and PLC hardware in industrial automation cells.
This device accepts a maximum connection voltage of AC 480 V +10%, allowing it to be wired to common factory mains without derating. It is configured for 3 input phases and can continuously carry a rated line current of 7.5 A. That current limit sets the total load that protected drives may draw through the filter. Internal components generate only 8.7 W of power dissipation, which helps limit heat buildup inside the cabinet. The enclosure carries a IP10 protection rating, indicating finger-safe openings while relying on the control cabinet for additional enclosure protection. With a mass of 1.5 kg, the filter is light enough for DIN rail or panel mounting without extra structural support.
The housing length is 210 mm, the overall width is 40 mm, and the terminal pitch is 10 mm between adjacent conductors. The narrow profile leaves room for neighboring power components, while an 80 mm body depth, 90 mm overall depth, and 60 mm overall height keep the footprint compact for stacked layouts. Line conductors up to 6 mm² (AWG 10) fit in the screw terminals, ensuring low contact resistance at the rated current. These dimensions allow the filter to sit close to servo drives, which helps keep lead lengths short and maintain attenuation performance.
Frequently Asked Questions about NFD02.1-480-008:
Q: What is the maximum connection voltage for the NFD02.1-480-008 mains filter?
A: The NFD02.1-480-008 supports a maximum connection voltage of AC 480 V plus 10%.
Q: What is the rated line current of the NFD02.1-480-008?
A: This mains filter is rated for a line current of 7.5 A to ensure safe operation under load.
Q: How many phases does the NFD02.1-480-008 support?
A: The NFD02.1-480-008 is designed for use in 3-phase power systems.
Q: What protection rating does the NFD02.1-480-008 offer?
A: It features a protection rating of IP10 for limited protection against solid objects.
Q: What is the supply terminal area for the NFD02.1-480-008?
A: The supply terminal area for this unit is specified as 6 mm², allowing for secure cable connections.
