Product Description

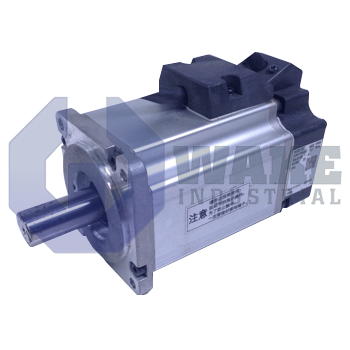

The MSM041B-0300-NN-M5-MH1 is a synchronous motor from Bosch. It is a highly dynamic motor that comes with high power density. It fulfills your precise application requirements with its flexibility in design. It offers outstanding features including a high precise encoder system, high protection category, and high torque density. The frame size of the MSM041B-0300-NN-M5-MH1 motor is 041 and the frame length is B. It comes with an electrically released holding brake. This synchronous servo motor is specifically designed for flange assembly. Its encoder facilitates a battery box to buffer the encoder data in a power failure. The type plate of the motor which is attached close to the encoder housing, provides all the required information such as motor identification and service information.

The MSM041B-0300-NN-M5-MH1 synchronous motor comes with natural convection cooling mode. It ensures a compact construction with reduced flange dimensions and short overall length. It also has a dynamic response and increased accuracy. The mechanical characteristics of the MSM041B-0300-NN-M5-MH1 module include 0.00009 kgm2 of rotor inertia, 4500 rpm of maximum speed, 2.3 kilograms of weight, -20 to 60 degrees Celsius of storage temperature, 0 to 40 degrees Celsius of ambient operating temperature, and IP54 protection rating. The winding code of the motor is 0300. Its electrical cable connections are done through circular connectors. The MSM041B-0300-NN-M5-MH1 synchronous motor has an optical encoder with encoder housing. It uses flexible connection cables with circular connectors and a bayonet lock for encoder connection. The encoder system of the motor is a multiturn absolute encoder with 20 bits of resolution. Its installation altitude is 1000 meters. The typical applications of this synchronous motor are handling systems, mounting systems, and machine tools. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
