Product Description

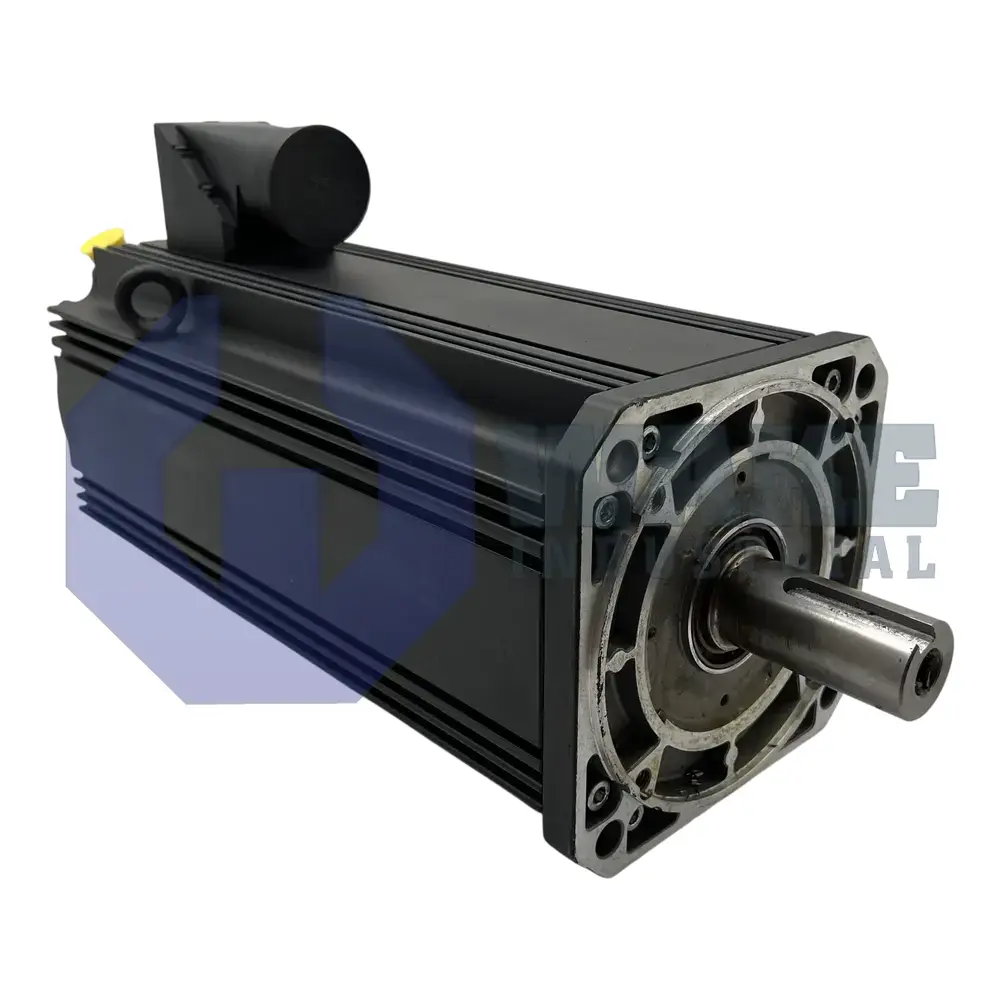

The MSK101E-0200-NN-S1-AP2-NNNN is a Bosch Rexroth servo motor from the MSK product line. As per the type code, the motor frame size is 101 and the frame length is E. The continuous torque output with natural convection at 60K overtemperature is 70 Nm. The continuous current with natural convection at 60K overtemperature is 32.1 Amps. The continuous torque output with natural convection at 100K overtemperature is 80.5 Nm. The continuous current with natural convection at 100K overtemperature is 39 Amps. The continuous torque output with surface cooling is 105.5 Nm. The continuous current with surface cooling is 48.2 Amps. Maximum current output of the MSK101E-0200-NN-S1-AP2-NNNN motor is 144.5 Amps and the maximum torque is 231 Nm. The motor has four pole pairs. Moment of inertia of the rotor on the MSK101E-0200-NN-S1-AP2-NNNN is 0.01380 kg m².

Thermal time constant of the MSK101E-0200-NN-S1-AP2-NNNN motor is 100 minutes. The maximum speed rating is 4500 RPM. The sound pressure level of the motor is 75 dB. The motor features a 70 Nm holding brake. The brake works according to the electrical release principle: it releases the shaft after application of a 24 Volts DC signal. The brake prevents accidental shaft rotation and helps to prevent equipment damage and injury. Protection class of the MSK101E-0200-NN-S1-AP2-NNNN is IP65 and the thermal class is 155. The motor features an optical singleturn encoder. The housing of the motor has a standard design. Other housing designs are available for different applications. The location of the electrical power connector is on side A of the housing. There are three other options for the location of the electrical power connector are available. The shaft on the MSK101E-0200-NN-S1-AP2-NNNN includes a keyway and a seal.
