Product Description

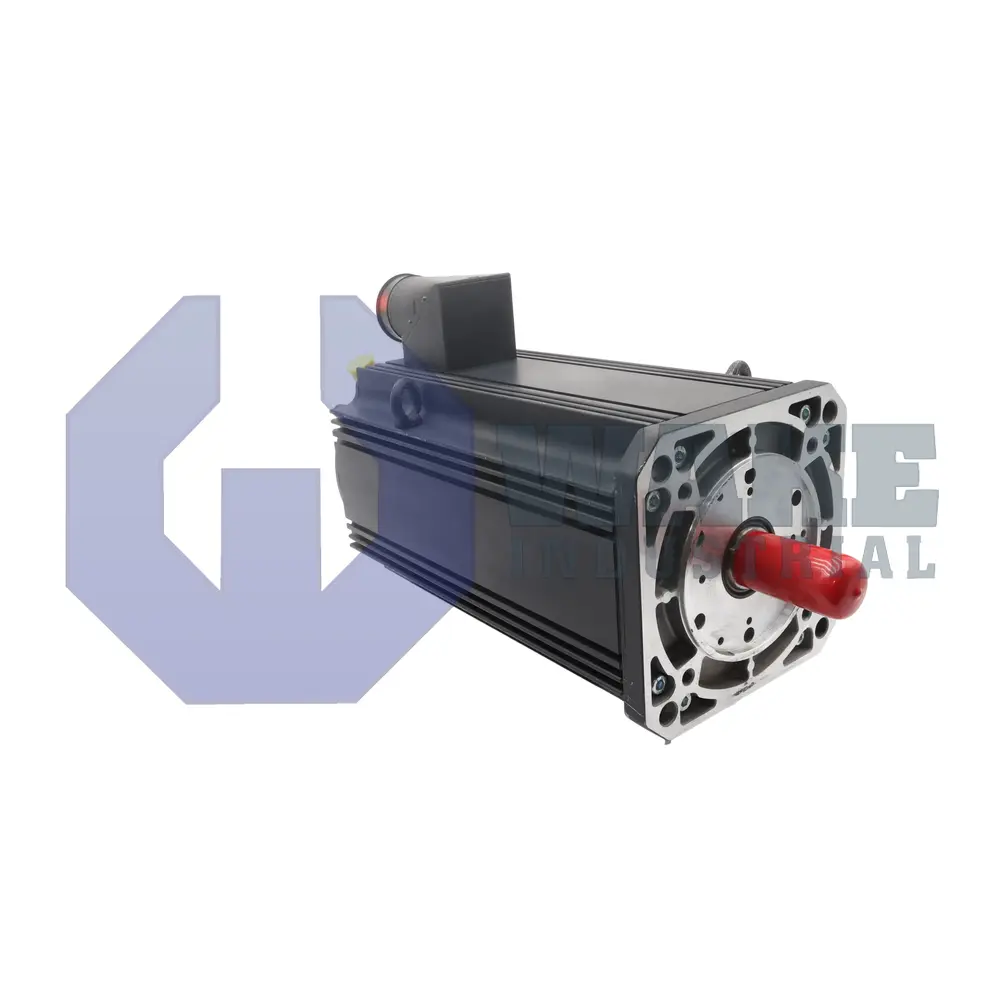

The MSK100C-0300-NN-M2-BP2-RNNN is a servo motor from Bosch’s MSK product line. In combination with compatible servo controllers, MSK motors are used for applications such as metal-forming machines, packaging machines and robotics. Monitoring and control of MSK motors may require use of additional sensors and actuators. Components not specified in the product documentation should not be connected or attached to the motor. Operation of MSK motors is only allows in the specified configurations and with the software/firmware specified in the functional description. To ensure that the motor performs the specified functions, the controller connected to it should be configured prior to system startup. Bosch MSK motors should be operated under the environment conditions specified in the product documentation. Operation of MSK motors under non-specified ambient conditions leads to output derating.

When used with natural convection, the MSK100C-0300-NN-M2-BP2-RNNN motor delivers 38 Nm torque and 21.6 Amps current at 60K overtemperature. When used with natural convection, the motor delivers 43.5 Nm torque and 27 Amps current output at 100K overtemperature. When used with surface cooling (forced air cooling) the motor delivers 57 Nm torque and 32.4 Amps current output. Maximum torque output of the MSK100C-0300-NN-M2-BP2-RNNN motor is 138 Nm. The maximum current output is 97.2 Amps. The torque constant at 20 degrees Celsius is 1.94 Nm/A. The voltage constant at 20 degrees Celsius is 119 Volts/1000 RPM. The MSK100C-0300-NN-M2-BP2-RNNN includes a holding brake rated for 70 Nm holding torque. The main motor shaft includes a keyway and a shaft seal. The encoder is an optical multiturn encoder with 2048 signal periods. The electrical power socket is on side B of the IP65-rated motor housing. Mass of the MSK100C-0300-NN-M2-BP2-RNNN motor is 48.9 kilograms.
