Product Description
Innovators in different parts of the world agree that Bosch Rexroth is among the few manufacturing firms that have a deep understanding of the modern machine needs as well as the common challenges facing machine users. The continuous research and market intelligence, integrated systems as well as skilled human resources have helped the company design and manufacture high-end motion control products. These automation products are designed to offer utter ruggedness, last exceptionally long, be ultra-efficient and also innovative. Whether you are considering purchasing a mains filter, a low inertia motor, synchronous motors, supply modules, drive controllers or even gearing, you can trust Bosch Rexroth cost-effective products.

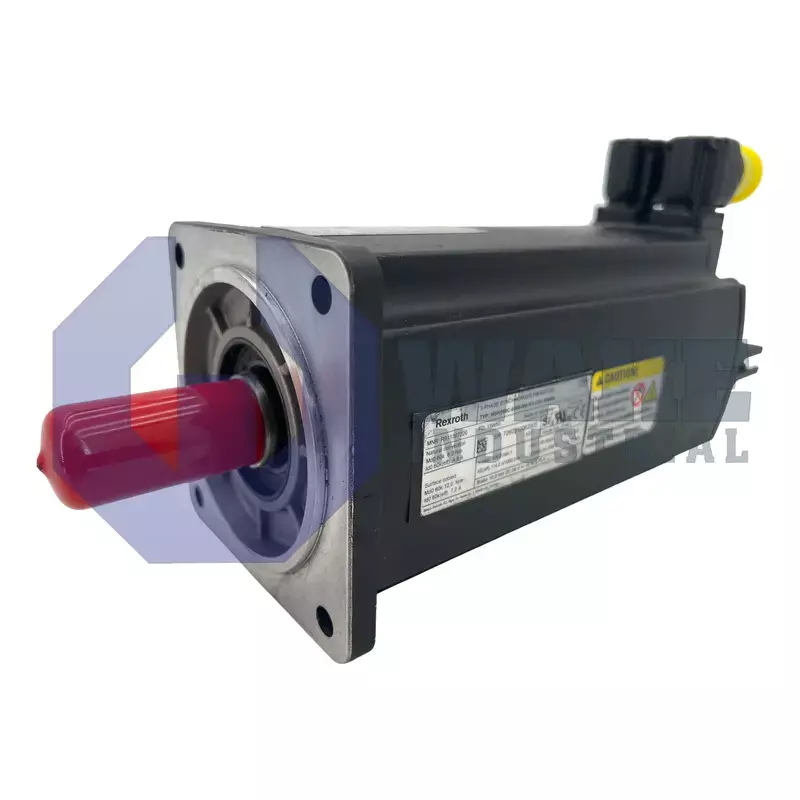

Bosch Rexroth’s MSK060C-0300-NN-M1-UG1-NNNN utilizes either a natural or a surface cooling method. The cooling method type you choose determines the technical data of your unit.
The MSK060C-0300-NN-M1-UG1-NNNN synchronous motor at 60K overtemperature has a continuous torque of 8Nm and a continuous current of 4.8 Amps at standstill. With 100K overtemperature and the motor at a standstill, the continuous current 5.5 A while the continuous torque is 8.8 Nm. In surface cooling, the continuous torque is 10.4 Nm while the continuous current stands at 6.2 Amps. This unit’s peak torque is 24 Nm and the maximum current is 19.2 Amps.
At 200C, the torque constant is 1.85Nm/A, the constant voltage is 114 V/min-1 and the winding resistance is 3.1 Ohms. The MSK060C-0300-NN-M1-UG1-NNNN synchronous motor has a winding inductivity of 35.9mH, a 2.1nH leakage capacitance of the component and a 0.0008kgxm2 rotor moment of inertia without holding brakes.
You’ll need 4 poles to operate this unit and the ambient operating temperature stands at 0 to 400C. The maximum expected speed is 4900 min-1 while the thermal time constant stands at 14 minutes.
