The Bosch Rexroth Indramat MLP200A-0060-FT-N0CN-TQNN is part of the MLP Synchronous Linear Motors series and features liquid cooling with a cable diameter of 18.5 mm and a cable length of 2 meters. It has a maximum DC bus voltage of 750 V, an IP65 protection class, and uses a thermo-encapsulation method for insulation.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

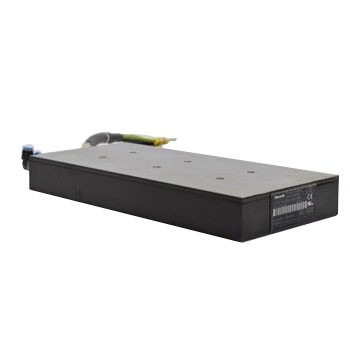

Bosch Rexroth Indramat manufactures the MLP200A-0060-FT-N0CN-TQNN, a synchronous linear motor element in the MLP Synchronous Linear Motors series. With a motor size of 200 and length designation A, this component converts electrical energy directly into linear thrust for positioning, conveying, or pick-and-place axes in industrial automation equipment. Its liquid-cooled design allows high continuous force density, while motor protection and temperature monitoring support dependable operation inside machine frames. Because thrust is produced directly along the travel axis, the motor can be used in systems that avoid rotary-to-linear transmission components.
The unit is sealed to IP65, preventing dust ingress and guarding against water jets, so it can be mounted close to process zones. Its coils are fed from a DC bus up to 750 V, which sets the compatible inverter range and supports high force output. At full excitation, the mover can travel at 60 m/min along its matched secondary track. Power conductors use a cross-section of 6.0 mm² and are bundled in a cable with an outer diameter of 18.5 mm supplied at a fixed length of 2 m. Liquid cooling, winding code 0060, a 5 × D static bending radius, and a front-side wiring orientation help the motor fit into compact machine layouts and support straightforward cable routing.
Thermal management is based on an allowed coolant temperature rise of 10 K and a maximum secondary temperature of 70 °C, which helps keep magnetic performance stable during operation. A warning threshold of 145 °C prompts drive intervention before the shutdown limit of 155 °C, matching the F-class insulation rating. The SNM150.DK protection sensor works with a KTY84-130 element to provide real-time temperature data to the drive, allowing protective action before overheating becomes critical. A thermo-encapsulation method seals the stator, and wiring is routed through the front face for straight cable entry. No encoder is installed, so position feedback must come from a separate device on the axis.
Frequently Asked Questions about MLP200A-0060-FT-N0CN-TQNN:
Q: What cooling type does the MLP200A-0060-FT-N0CN-TQNN linear motor utilize?
A: This model uses liquid cooling to efficiently manage operating temperatures during use.
Q: What is the maximum DC bus voltage for the MLP200A-0060-FT-N0CN-TQNN?
A: The MLP200A-0060-FT-N0CN-TQNN supports a maximum DC bus voltage of 750 V for its operation.
Q: What level of environmental protection does the MLP200A-0060-FT-N0CN-TQNN offer?
A: This linear motor is manufactured with an IP65 protection class, offering resistance to dust and low-pressure water jets.
Q: What is the maximum speed capability of the MLP200A-0060-FT-N0CN-TQNN at Fmax?
A: The MLP200A-0060-FT-N0CN-TQNN can reach a maximum speed of 60 meters per minute at Fmax.
Q: Does the MLP200A-0060-FT-N0CN-TQNN include a motor encoder?
A: This model has no motor encoder installed, so it does not provide position feedback by default.
