MKE118D-012-AP0-KE6 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911337264
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

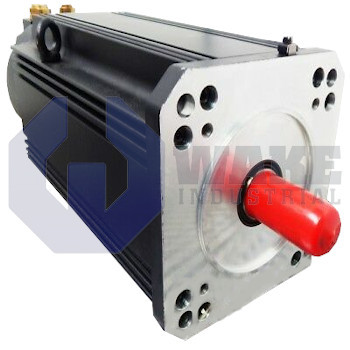

The Bosch Rexroth Indramat MKE118D-012-AP0-KE6 is a servo motor from the MKE Synchronous Motors series, designed for potentially explosive areas and compliant with ATEX housing standards. It delivers a maximum torque of 187 Newton-meters, a continuous torque at standstill of 48 Newton-meters, and has a maximum speed of 2000 revolutions per minute. The motor weighs 65 kilograms, features an IP65-rated enclosure, and uses an optical Singleturn Hiperface encoder with 128 increments.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKE118D-012-AP0-KE6 is a servo motor for potentially explosive areas in the MKE Synchronous Motors series. Its ATEX-compliant housing and IP65 sealing allow use in hazardous zones where dust protection and resistance to low-pressure water jets are required. A top-mounted terminal box simplifies wiring, and the cable entry accepts glands from 17.0 mm to 19.5 mm. Operation is permitted from 0 °C to +40 °C, and Class F insulation supports the thermal load of the windings. The motor comes without a holding brake, so any static load must be held by external mechanics or drive-controlled torque.
At standstill with a 60 K winding temperature rise, the motor delivers 48.0 Nm continuously while drawing 13.0 A. For short, rapid indexing moves, it can handle 58.5 A RMS and produce a maximum torque of 187.0 Nm. The maximum speed is 2000 rpm, and the 012 winding has an inductance of 15.000 mH with a resistance of 0.98 Ω at 20 °C. The discharge capacitance is 20.2 nF, which helps limit high-frequency leakage toward the inverter. Position feedback is provided by an optical single-turn Hiperface encoder, model S1, with 128 increments, allowing the connected drive to track rotor position for controlled motion. Sound pressure is 61.1 dB(A) ±3.
The motor has a torque constant of 4.29 Nm/A and a back-EMF constant of 263.5 V/1000 rpm, values used to match current demand and voltage behavior with the drive. Dynamic response is supported by a rotor inertia of 0.03620 kg m², which influences acceleration and deceleration under changing loads. Total motor mass is 65.0 kg, and the shaft seal helps prevent lubricant loss and contaminant entry during operation. Torque is transmitted through a keyed shaft that conforms to DIN 6885. Shield terminations inside the enclosure help reduce conducted emissions to nearby equipment.
Frequently Asked Questions about MKE118D-012-AP0-KE6:
Q: What is the allowed ambient temperature range for the MKE118D-012-AP0-KE6 servo motor?
A: The MKE118D-012-AP0-KE6 is rated for operation in ambient temperatures from 0°C to +40°C.
Q: What is the maximum torque output of the MKE118D-012-AP0-KE6?
A: This motor achieves a maximum torque of 187.0 Nm.
Q: What type of encoder and resolution does the MKE118D-012-AP0-KE6 feature?
A: The MKE118D-012-AP0-KE6 is equipped with a singleturn optical encoder using Hiperface protocol, delivering 128 increments.
Q: What kind of shaft and sealing are provided on the MKE118D-012-AP0-KE6?
A: The shaft includes a DIN 6885 keyway and is supplied with a shaft seal for added protection.
Q: Does the MKE118D-012-AP0-KE6 meet safety requirements for explosive areas?
A: This motor complies with the ATEX standard, making it suitable for use in potentially explosive environments.
