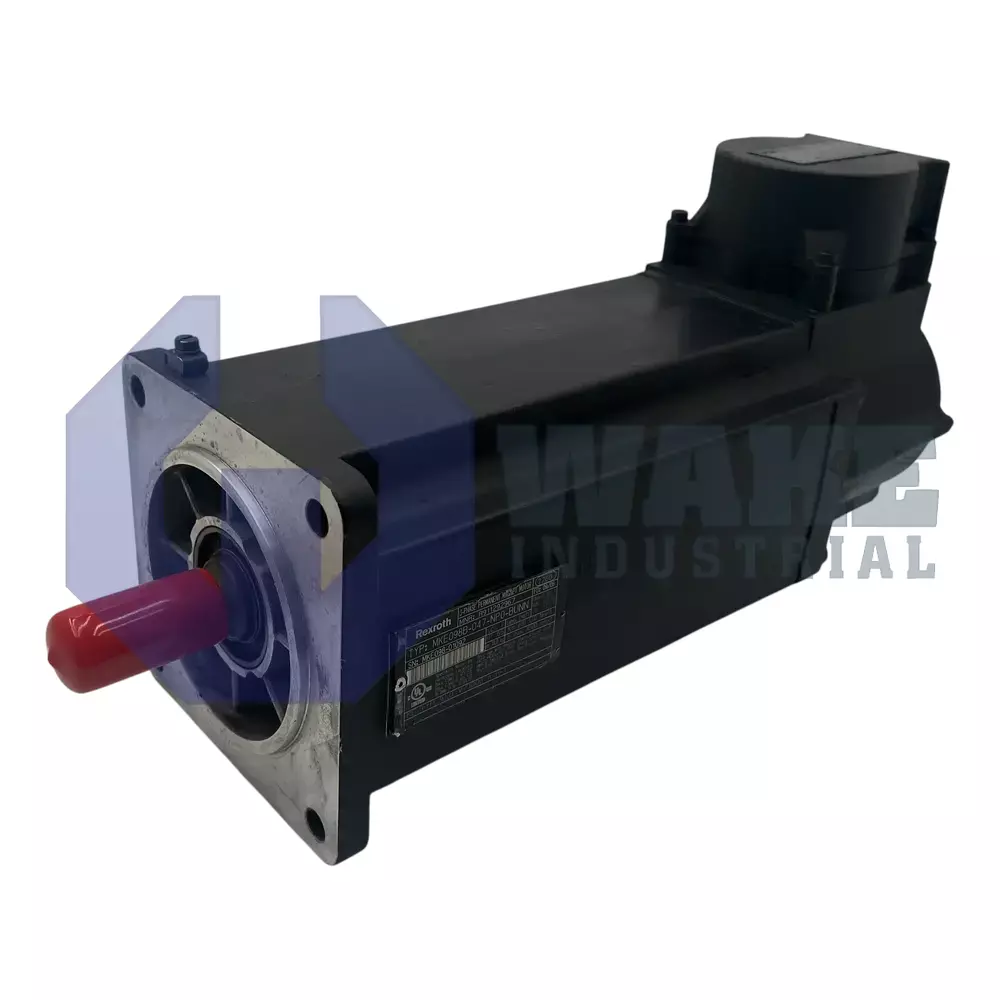

MKE098B-047-NP0-BUNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911292967
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKE098B-047-NP0-BUNN is a servo motor in the MKE Synchronous Motors series designed for use in potentially explosive areas. It weighs 18 kilograms and features a continuous torque at standstill of 12.0 Nm and a maximum torque of 43.5 Nm. The motor has a DIN 6885 shaft with keyway, a terminal box connection on the B-side, and operates with a maximum velocity of 4500 rotations per minute.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKE098B-047-NP0-BUNN servo motor is produced by Bosch Rexroth Indramat for the MKE Synchronous Motors series. Designed for potentially explosive areas, it converts drive controller current into controlled mechanical motion on actuators, gantries, or mixers that operate inside zone-rated enclosures. Its construction follows UL and CSA housing standards, allowing installation in North American automation lines without additional field approval, and the terminal box on side B streamlines armored cable routing through protected cable glands.
With a 60 K winding temperature rise, the motor can deliver a continuous torque of 12.0 Nm while drawing only 9.8 A of standstill current, providing a workable torque-to-current ratio for tight position loops. During brief overloads, the drive may supply up to 43.5 Nm of peak torque and 44.3 A of RMS current so short acceleration tasks can be completed without stalling. A torque constant of 1.41 Nm/A at 20 °C links controller phase current to shaft torque, which helps the amplifier produce predictable output during positioning and speed control. Internally, phase inductance is 1.20 mH, phase resistance is 8.400 Ω, and discharge capacity is 6.7 nF, which shapes the electrical response during switching. The Class 155 (F) insulation system supports these electrical loads without thermal breakdown.
Mechanical performance is led by a top speed of 4500 rpm and a rotor inertia of 0.00430 kg·m², so the axis can combine fast index moves with limited overshoot. The shaft has a keyway machined to DIN 6885, a shaft seal is fitted, and the motor weighs 18.0 kg, which affects coupling selection and bearing loads. The shaft seal also helps limit contaminant entry at the output interface during operation. Operation is permitted from 0 to +40 °C, and derating is required outside that range. The motor is supplied without a holding brake, produces 61.8 dB[A] sound pressure at rated speed, carries winding code 047, and has a voltage constant of 91.0 V per 1000 rpm for back-EMF calculation.
Frequently Asked Questions about MKE098B-047-NP0-BUNN:
Q: What type of shaft design does the MKE098B-047-NP0-BUNN motor have?
A: The MKE098B-047-NP0-BUNN motor features a shaft with a DIN 6885 keyway design and includes a shaft seal.
Q: What is the maximum velocity of the MKE098B-047-NP0-BUNN motor?
A: This motor is capable of reaching a maximum velocity of 4500 min⁻¹.
Q: What is the maximum torque output of the MKE098B-047-NP0-BUNN motor?
A: The maximum torque produced by the MKE098B-047-NP0-BUNN motor is 43.5 Nm.
Q: Does the MKE098B-047-NP0-BUNN include a holding brake?
A: This model does not come equipped with a holding brake.
Q: What connection direction and type does the MKE098B-047-NP0-BUNN use?
A: The connection direction for this motor is located on the B-side, utilizing a terminal box connection type.
