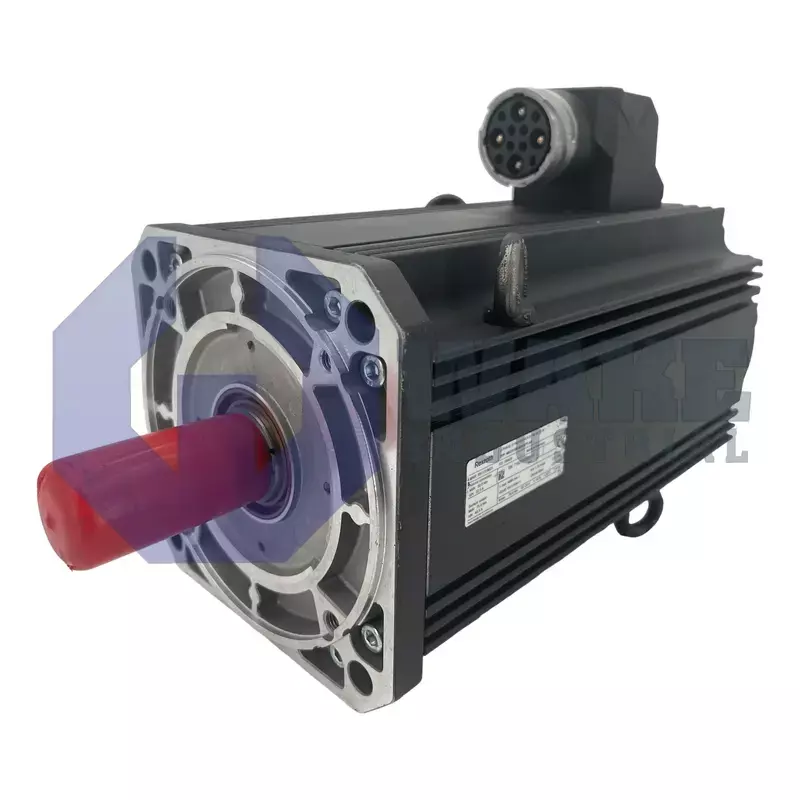

MKD115B-024-KP1-AA
MPN: R911318625
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships Today
The MKD115B-024-KP1-AA servomotor boasts a peak current of 105 amps, a rated torque of 30 Nm, and a maximum torque of 90 Nm with cooling via natural convection. Part of the MKD Series manufactured by Bosch Rexroth Indramat, it has an IP65 enclosure and operates at a rated speed of 2500 rpm with digital servo feedback.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth provides a complete range of industrial automation products. The company produces a broad range of synchronous motors, controllers, and frequency converters for its users. The company is especially concerned about its customer satisfaction.
The MKD115B-024-KP1-AA model provides high overload capability due to the favorable heat dissipation from the stator windings to the outside wall of the motor housing. The MKD synchronous motor can be used as the main spindle drive and servo drive in the digital intelligent drive system. The motor is suitable to be used in machine tools, robots, handling systems, and food machines. The winding code of the motor is 024 and it generates maximum torque at standstill. The output shaft of the motor is balanced with a key as per DIN 6885-1 (with radial shaft sealing rings). The model uses resolver feedback with a multi-turn absolute encoder to control the speed and to position the motor with the system precision of ±8 angular minutes. The MKD synchronous motor provides a simple and quick start-up due to the data memory in the encoder unit. A black coat is applied to the motor housing to protect it from harsh environmental conditions.
The model MKD115B-024-KP1-AA is equipped with a 22 Nm holding brake and it takes electrical connection through the A-side power connector which is located at the top of the motor. A temperature sensor is fixed inside the motor winding which provides overload protection. The ideal ambient temperature range on which the motor can operate without a reduction in rated data is 0 to +40 degree Celsius at the maximum height of 1000 meters. The motor can be mounted into IM B5, IM V1, and IM V3 mounting positions. When the motor is attached according to the IM V3 position, ensure that the fluid cannot be present at the output shaft. Wake Industrial provides worldwide shipment of this MKD synchronous motor along with a one-year warranty.
