MKD112D-027-KP0-BN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911283139
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

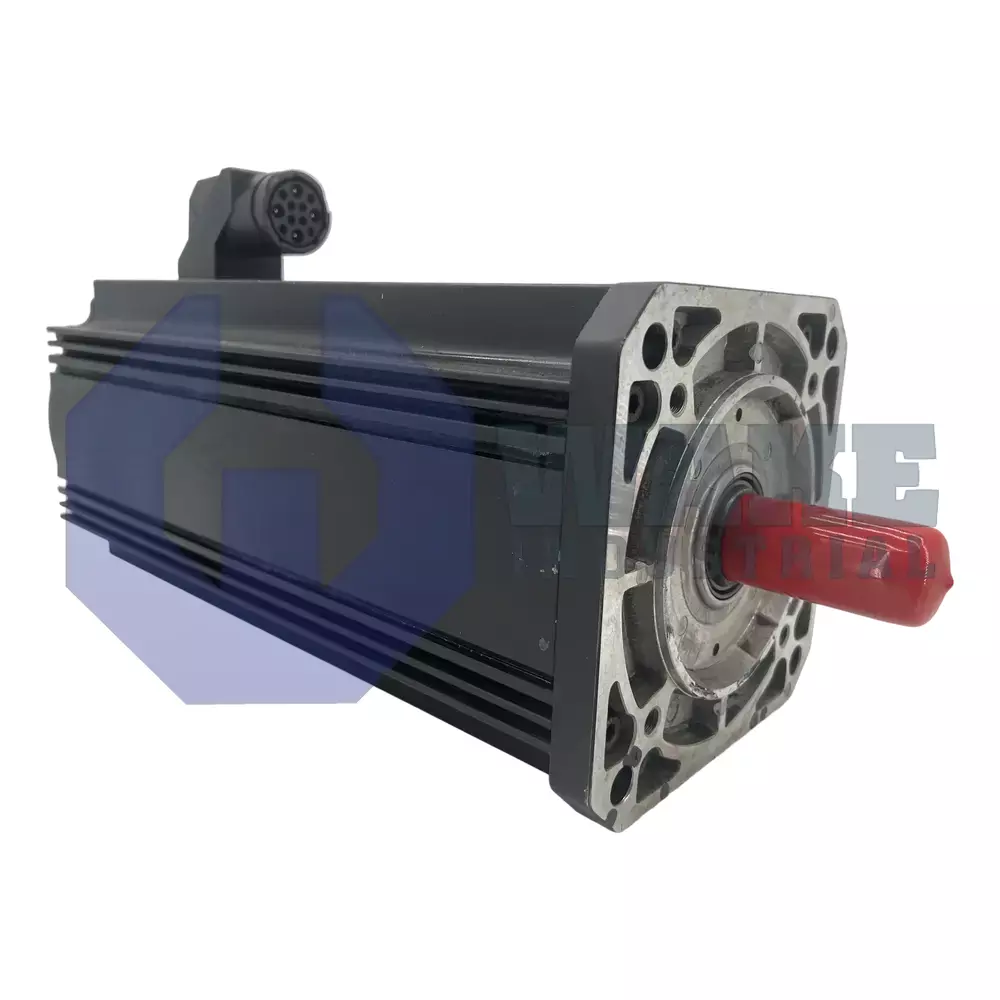

The Bosch Rexroth Indramat MKD112D-027-KP0-BN is a servo motor from the MKD Synchronous Motors series. It offers a continuous torque at standstill of 48 Nm and features a 192 mm flange size with a centering diameter of 130 mm. This model comes with resolver feedback with integrated encoder for absolute position detection, and includes a shaft with keyway and a shaft seal.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112D-027-KP0-BN is a servo motor built by Bosch Rexroth Indramat as part of the MKD Synchronous Motors series. In automated machinery, it converts commanded current into precise rotary motion for indexing tables, gantry drives, and similar closed-loop axes. Its permanent-magnet rotor works with electronic commutation so the drive can maintain smooth torque production at low speed and during steady running. This operating behavior is useful in positioning tasks that require repeatable motion over long duty cycles. Because commutation is handled electronically, the motor can respond quickly to changing current commands from the amplifier during acceleration, deceleration, and controlled holding.
A centering pilot of 130 mm aligns the housing, and the square flange spans 192 mm so the motor mates with ISO B14 gearboxes and adapter plates. Power and feedback leave the unit on Side B through an output connector, which keeps the cable exit at the rear of the installation. The rear-facing cable layout can also reduce interference with nearby machine components in compact assemblies. Within this motor size, the electromagnetic package supplies a continuous stall torque of 48.0 Nm. That rating supports axes that must hold load at zero speed for extended periods when the matching drive is sized correctly.
Position is measured by resolver feedback with integrated encoder, and the electronics report an absolute multi-turn value exceeding 4,096 revolutions so the drive can reference the axis immediately after power-up. The motor is supplied without a holding brake, so a separate holding method is needed when the load must remain fixed with power removed. Torque is transmitted through a shaft with keyway, and a shaft seal helps reduce the entry of oil or coolant. Copper losses and control parameters are matched to winding code 027, which keeps electrical behavior consistent with compatible drive settings. This combination supports stable feedback processing and dependable torque transfer in coordinated motion systems.
Frequently Asked Questions about MKD112D-027-KP0-BN:
Q: Is a holding brake included with the MKD112D-027-KP0-BN servo motor?
A: The MKD112D-027-KP0-BN servo motor does not include a holding brake.
Q: What type of encoder and feedback does the MKD112D-027-KP0-BN provide?
A: This motor offers resolver feedback with an integrated encoder for position detection.
Q: What is the position detection capability of the MKD112D-027-KP0-BN motor?
A: The MKD112D-027-KP0-BN provides an absolute position detection capability greater than 4096 revolutions.
Q: What is the continuous torque at standstill for the MKD112D-027-KP0-BN model?
A: This servo motor supplies a continuous torque of 48.0 Nm at standstill.
Q: What are the shaft features of the MKD112D-027-KP0-BN servo motor?
A: The shaft is equipped with a keyway and a seal for this model.
