Product Description:

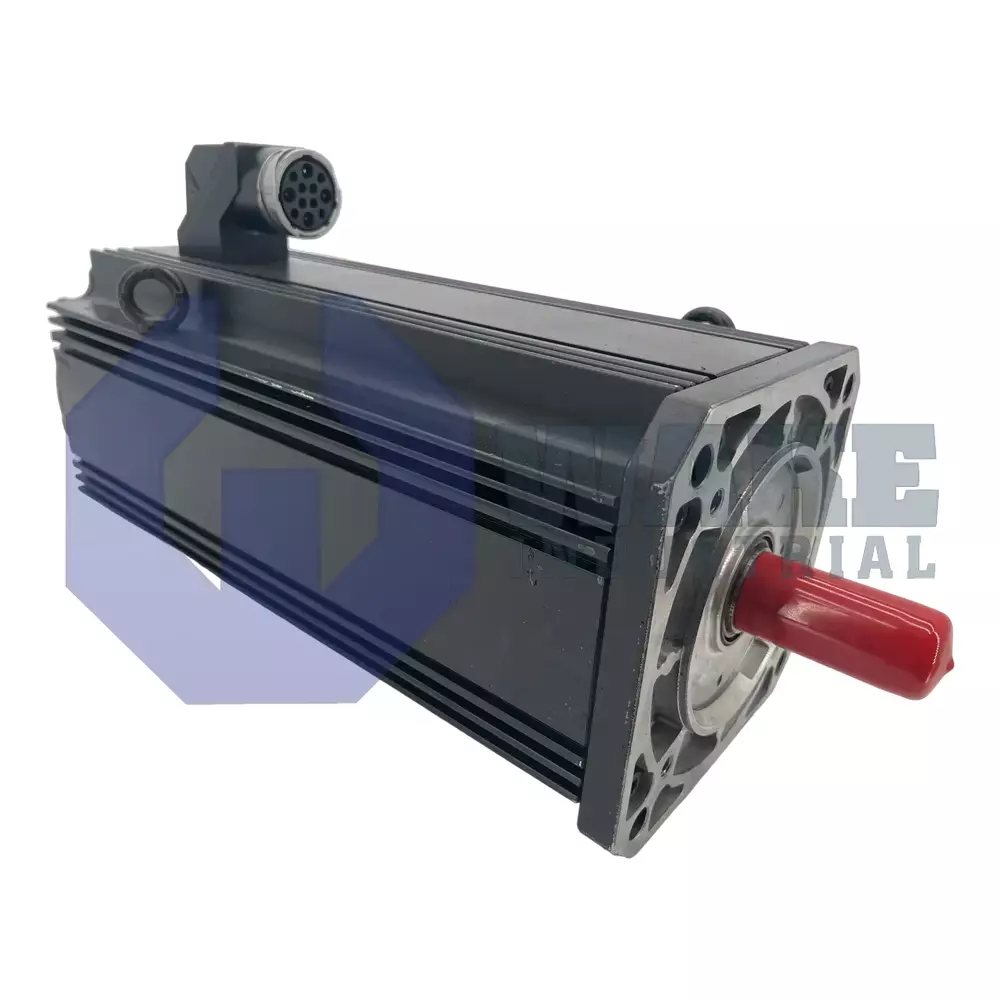

The MKD112D-027-KP0-AN is a brushless AC servo motor manufactured by Bosch Rexroth Indramat within the MKD Synchronous Motors series. As a compact rotary actuator for industrial automation, it couples to a compatible drive controller to supply commanded speed or position to conveyors, gantry axes, and forming stations. The design combines an integrated feedback device, a laminated stator, and a keyed output shaft to translate electrical power into repeatable mechanical motion in closed-loop applications.

At stall, the motor can deliver a continuous torque of 48.0 Nm, allowing it to hold heavy loads without excess heating. Mounting alignment is aided by a centering diameter of 130 mm, while the square mounting flange measures 192 mm, making the unit compatible with standard gearboxes and machine frames. Position feedback is supplied by Resolver feedback with an integrated sensor, which supports sinusoidal commutation and reliable operation in electrically noisy cabinets. The winding code 027 corresponds to the electrical resistance and inductance profile, and the longer active stack increases torque density within the 112-frame housing.

Power and feedback cables exit on Side A, and all terminations are made through a keyed output connector that simplifies cable connection. Absolute position detection of >4096 revs eliminates homing moves after power-up, which can reduce cycle delays in pick-and-place cells. The rotor uses a shaft with keyway so torque can be transmitted directly to pulleys or couplings, and a shaft seal is fitted to separate lubricant from contaminants when the motor is mounted in a sealed enclosure. The motor is supplied without a holding brake, so external clamping or drive-based torque must be used for static load retention.
