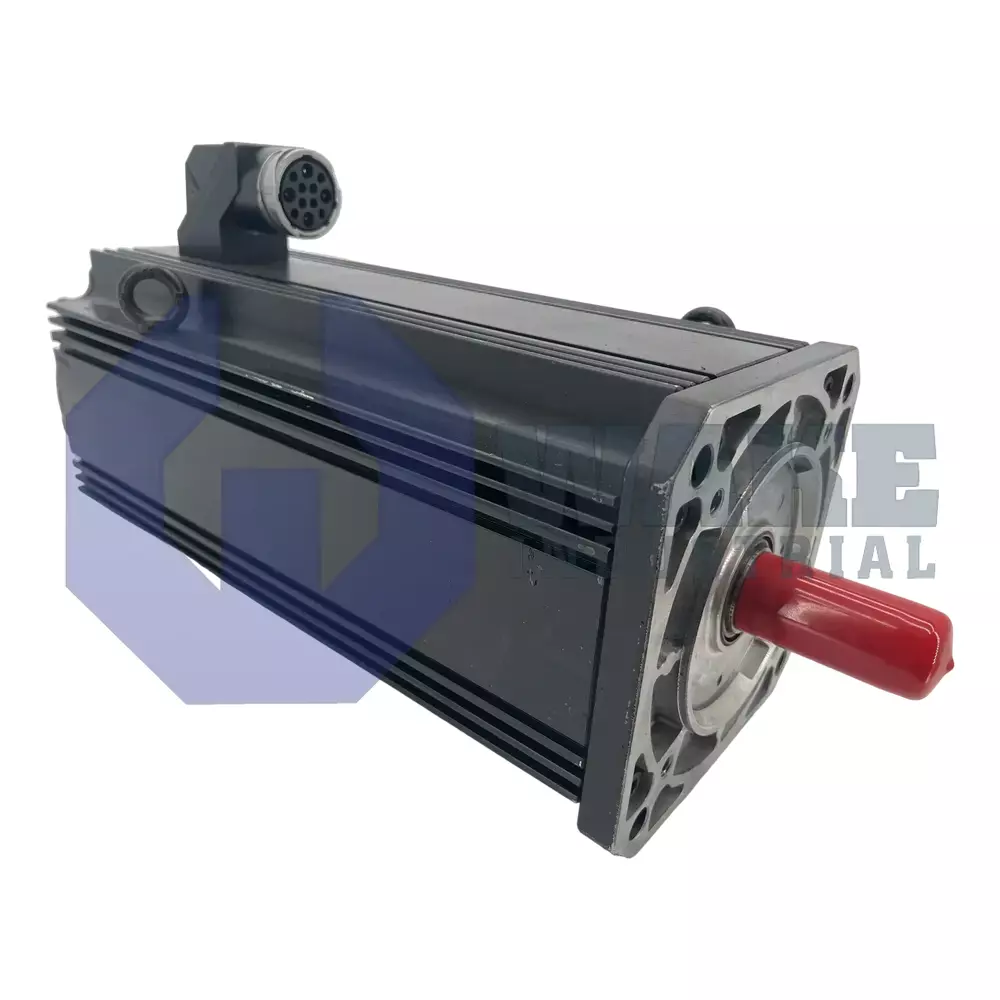

MKD112D-027-GP3-AN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911286345
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKD112D-027-GP3-AN is a servo motor from the MKD Synchronous Motors series and features a flange size of 192 mm with a centering diameter of 130 mm. The motor delivers a continuous standstill torque of 48 Nm and includes a holding brake with 70 Nm torque. It is equipped with resolver feedback for position detection and has a shaft with keyway and shaft seal.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat manufactured the MKD112D-027-GP3-AN, a servo motor in the MKD Synchronous Motors series. It serves as a rotary actuator for CNC tables, gantry axes, and automated handling stations where precise speed and position control are required. The motor’s resolver closes the feedback loop with the drive controller, and an internal brake secures the load when the system is at rest, allowing the unit to maintain commanded positions even after power removal.
This model delivers a continuous standstill torque of 48.0 Nm, giving predictable force for holding and low-speed operations. An integrated brake supplies up to 70 Nm of locking torque to help prevent vertical drift once the drive is disabled. Mounting accuracy is supported by a square flange that measures 192 mm across and by a pilot diameter of 130 mm that centers the housing on the machine interface. Motion feedback is provided by resolver feedback (RSF), which outputs analog sine-cosine signals for fine interpolation inside the drive. Winding code 027 identifies the stator resistance and inductance used by the connected controller to apply appropriate current limits under dynamic load conditions. Relative position detection, a characteristic of the resolver, allows incremental homing routines at system startup.
All electrical terminations are routed on side A, and the motor ships with an output connector that permits quick plug-in wiring during cabinet assembly. The rotor is machined for a shaft with keyway, simplifying the installation of belt pulleys or rigid couplings while resisting slip under cyclic torque. Frame size 112 with length code D balances inertia against acceleration demands, and a factory-installed shaft seal helps block coolant or dust from entering the bearing cavity during operation. This mounting and shaft arrangement suits mid-power servo stations that use standard couplings and machine interfaces.
Frequently Asked Questions about MKD112D-027-GP3-AN:
Q: What is the centering diameter of the MKD112D-027-GP3-AN motor?
A: The MKD112D-027-GP3-AN features a centering diameter of 130 mm, suitable for precise alignment during installation.
Q: Does the MKD112D-027-GP3-AN servo motor include a holding brake?
A: This model comes equipped with a holding brake, providing a holding brake torque of 70 Nm.
Q: What type of encoder is used in the MKD112D-027-GP3-AN for position feedback?
A: The MKD112D-027-GP3-AN uses resolver feedback (RSF), offering relative position detection for control applications.
Q: What is the continuous torque at standstill for the MKD112D-027-GP3-AN?
A: With a continuous torque at standstill of 48.0 Nm, this motor can maintain significant torque output during stationary operation.
Q: Where is the connection direction for the MKD112D-027-GP3-AN located?
A: The connection direction for this motor is on Side A, utilizing an output connector for electrical connections.
